Asus BW-16D1X-U

[Andy_01]

Hi, can anyone please help. Is this drive able to be patched to read 4K?
If so could you please advise what flash utility to use and which firmware?
Thank you!
Andy

Drive Information
OS device name: F:
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: A104
Serial number:
Firmware date: 2119-01-04 10:47
Bus encryption flags: 1F

LibreDrive Information
Status: Possible (with patched firmware)
Drive platform: MT1959
Harware support: Yes
Firmware support: No
Firmware type: Original (patched version available)
Firmware version: 0.A104W
DVD all regions: Possible (with patched firmware)
BD raw data read: Possible (with patched firmware)
BD raw metadata read: Possible (with patched firmware)
Unrestricted read speed: Possible (with patched firmware)

[Billycar11]

See guide below or email me or Marty for an automated flasher

[Andy_01]

Thank you! As it turns out I took a chance and used the SDFTool Flasher v1.36 and Firmware WH16NS60-1.02
Worked like a charm.

[oap1ikwydlsh2o]

hi , which software di u use please

[OneDay]

I used SDFTool 1.36
Used Firmware BW-16D1HT 3.10
Worked perfectly since it is a Asus drive.

[oap1ikwydlsh2o]

thank you , worked forst time .

[zittrig]

I used SDFTool 1.36
Used Firmware BW-16D1HT 3.10
Worked perfectly since it is a Asus drive.

To avoid the Sleep Bug or have less problems with 3-Layer discs feel free to flash to LG WH16NS60 1.02MK.

[OneDay]

thank you , worked forst time .

Glade it worked

Also as zittrig said flash the LG WH16NS60 1.02MK

The drives in the BW-16D1X-U are rebranded LG WH16NS40 from what I have researched.

[bob1273]

Hey there,
so if I have a new ASUS BW-16D1X-U, which Firmware should I flash to - the LG WH16NS60 1.02MK ?
Thanks in advance

[Billycar11]

Hey there,
so if I have a new ASUS BW-16D1X-U, which Firmware should I flash to - the LG WH16NS60 1.02MK ?
Thanks in advance

depends if its mt1959 see guide or email me or marty for an auto flasher

if its pioneer email me for the automated flasher see profile for email

[Coopervid]

Hey there,
so if I have a new ASUS BW-16D1X-U, which Firmware should I flash to - the LG WH16NS60 1.02MK ?
Thanks in advance

Post your Makemkv info as plain text.

[bob1273]

Well, I ordered it, but there are some availability problems und I did not get it yet. As soon as I receive the drive I will post the information, thanks.

[funkywaddle]

I'm having some issues trying to flash my drive.

Code: Select all

Drive Information
OS device name: /dev/sr0
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: A105
Serial number: KLZP4ID3934
Firmware date: 2120-12-02 11:14
Bus encryption flags: 1F

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

I am running on Ubuntu 25.10.

I downloaded the sdf.bin file, and downloaded the "The all you need firmware pack".
I first extracted the `ASUS-BW-16D1HT-3.10-WM01601-211901041014.bin` file, and copied both it and the sdf.bin file to /tmp, but as you can see from the image below, that didn't work. Then I extracted the `HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin` file and put that into /tmp.

The command I ran:

Code: Select all

./makemkvcon f -d 'dev_21:3' -f /tmp/sdf.bin rawflash main -i /tmp/HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin

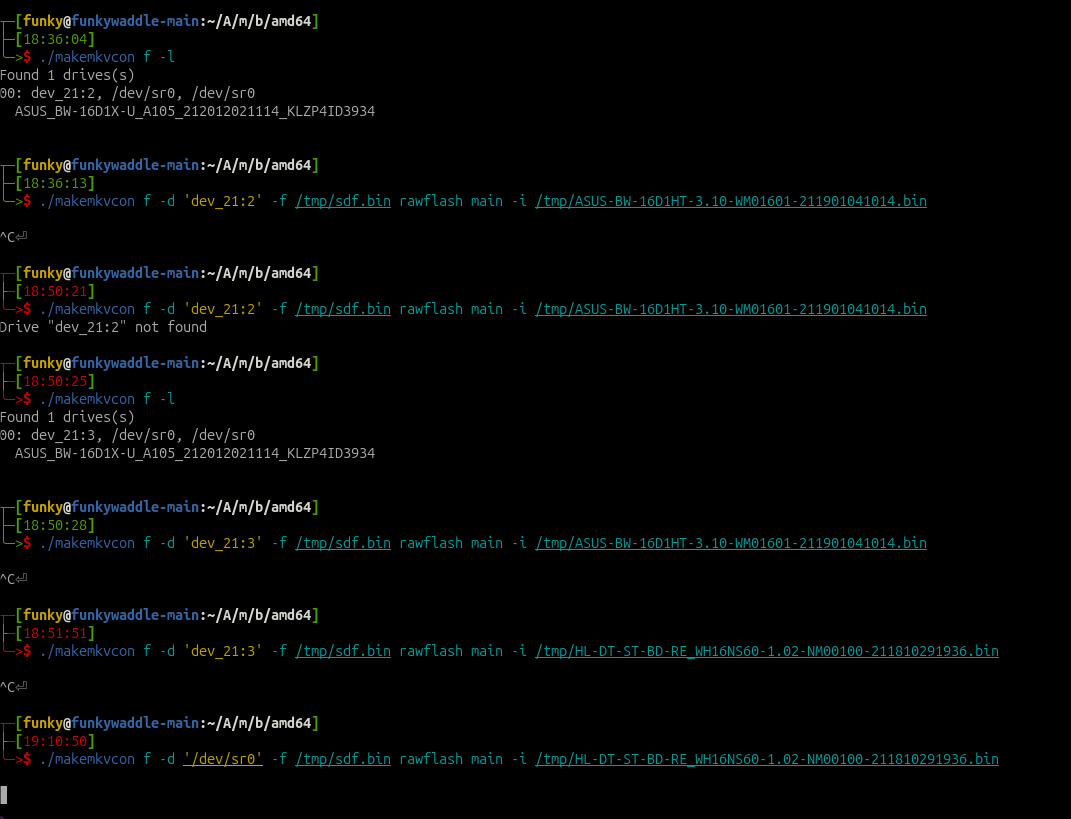

But to no avail. You can see from the image that it's not doing anything. I even waited for 20 minutes just in case it was a slow process. But no indication it's doing anything. No progress indicator, no output, no errors, nothing.



Any ideas, thoughts, help, guidance, etc would be greatly appreciated.

Thanks

[Billycar11]

I'm having some issues trying to flash my drive.

Code: Select all

Drive Information
OS device name: /dev/sr0
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: A105
Serial number: KLZP4ID3934
Firmware date: 2120-12-02 11:14
Bus encryption flags: 1F

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

I am running on Ubuntu 25.10.

I downloaded the sdf.bin file, and downloaded the "The all you need firmware pack".
I first extracted the `ASUS-BW-16D1HT-3.10-WM01601-211901041014.bin` file, and copied both it and the sdf.bin file to /tmp, but as you can see from the image below, that didn't work. Then I extracted the `HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin` file and put that into /tmp.

The command I ran:

Code: Select all

./makemkvcon f -d 'dev_21:3' -f /tmp/sdf.bin rawflash main -i /tmp/HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin

But to no avail. You can see from the image that it's not doing anything. I even waited for 20 minutes just in case it was a slow process. But no indication it's doing anything. No progress indicator, no output, no errors, nothing.



Any ideas, thoughts, help, guidance, etc would be greatly appreciated.

Thanks

enc

[funkywaddle]

I'm having some issues trying to flash my drive.

Code: Select all

Drive Information
OS device name: /dev/sr0
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: A105
Serial number: KLZP4ID3934
Firmware date: 2120-12-02 11:14
Bus encryption flags: 1F

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

I am running on Ubuntu 25.10.

I downloaded the sdf.bin file, and downloaded the "The all you need firmware pack".
I first extracted the `ASUS-BW-16D1HT-3.10-WM01601-211901041014.bin` file, and copied both it and the sdf.bin file to /tmp, but as you can see from the image below, that didn't work. Then I extracted the `HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin` file and put that into /tmp.

The command I ran:

Code: Select all

./makemkvcon f -d 'dev_21:3' -f /tmp/sdf.bin rawflash main -i /tmp/HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin

But to no avail. You can see from the image that it's not doing anything. I even waited for 20 minutes just in case it was a slow process. But no indication it's doing anything. No progress indicator, no output, no errors, nothing.



Any ideas, thoughts, help, guidance, etc would be greatly appreciated.

Thanks

enc

Thanks

enc, not main?

I did finally get it to work. I had to downgrade to 1.17.7. It seemed to work alright. I'm currently making a mkv from a bluray disc. We'll see if it works.

Should I have done enc instead of main? Do I need to do it again?
