Pioneer BDR-XD07TB spindle holder fail

[zordiack]

Hello everyone, I own a Pioneer BDR-XD07TB external drive which worked perfectly for long time, but has now unfornately physically failed on me

I know this is a long shot, but has anyone been able to replace the plastic spindle assembly in the middle? I have one out of three missing ”claw” in it, and it won’t hold the discs stable anymore.

I have an LG drive as replacement, but it is not as good with reading as this one was, especially with failing ddrescue results.

BR, zordiack

[skyrider]

I have a BDR‑XD08 with a damaged mainboard. The drive is intended for parts.
If you take a photo, I’ll be able to compare whether this part in the BDR‑XD07 looks the same as in the BDR‑XD08.

[zordiack]

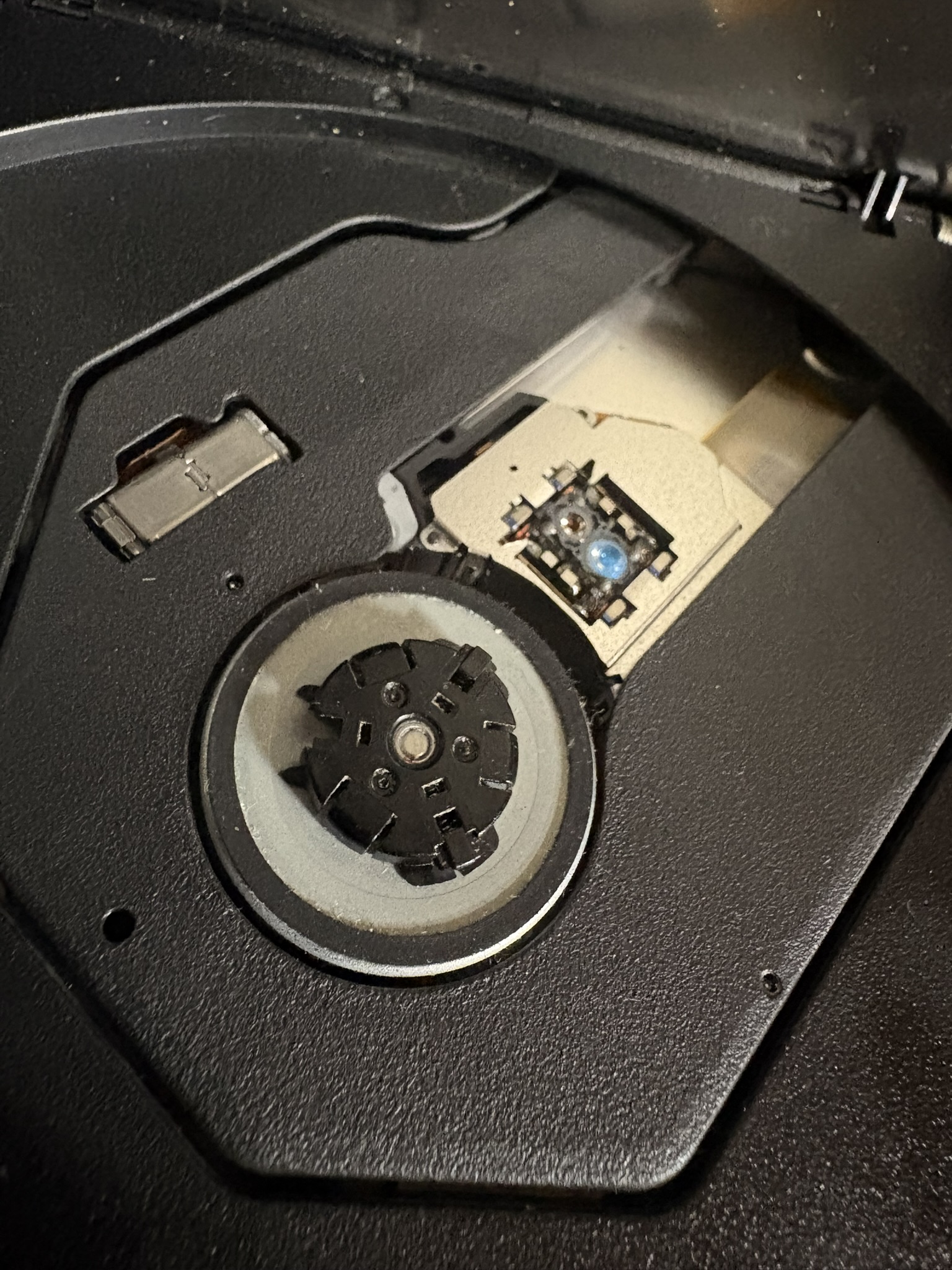

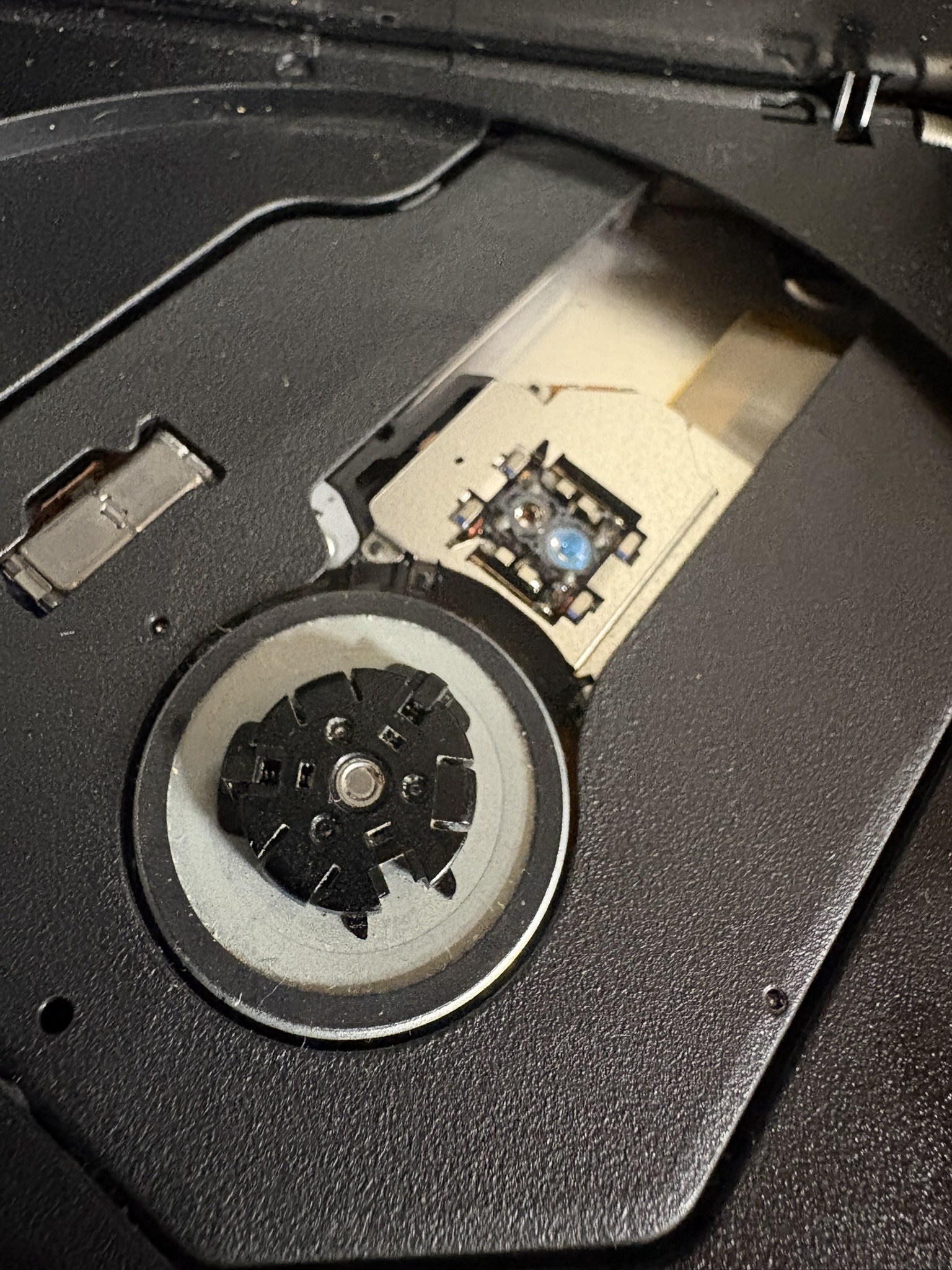

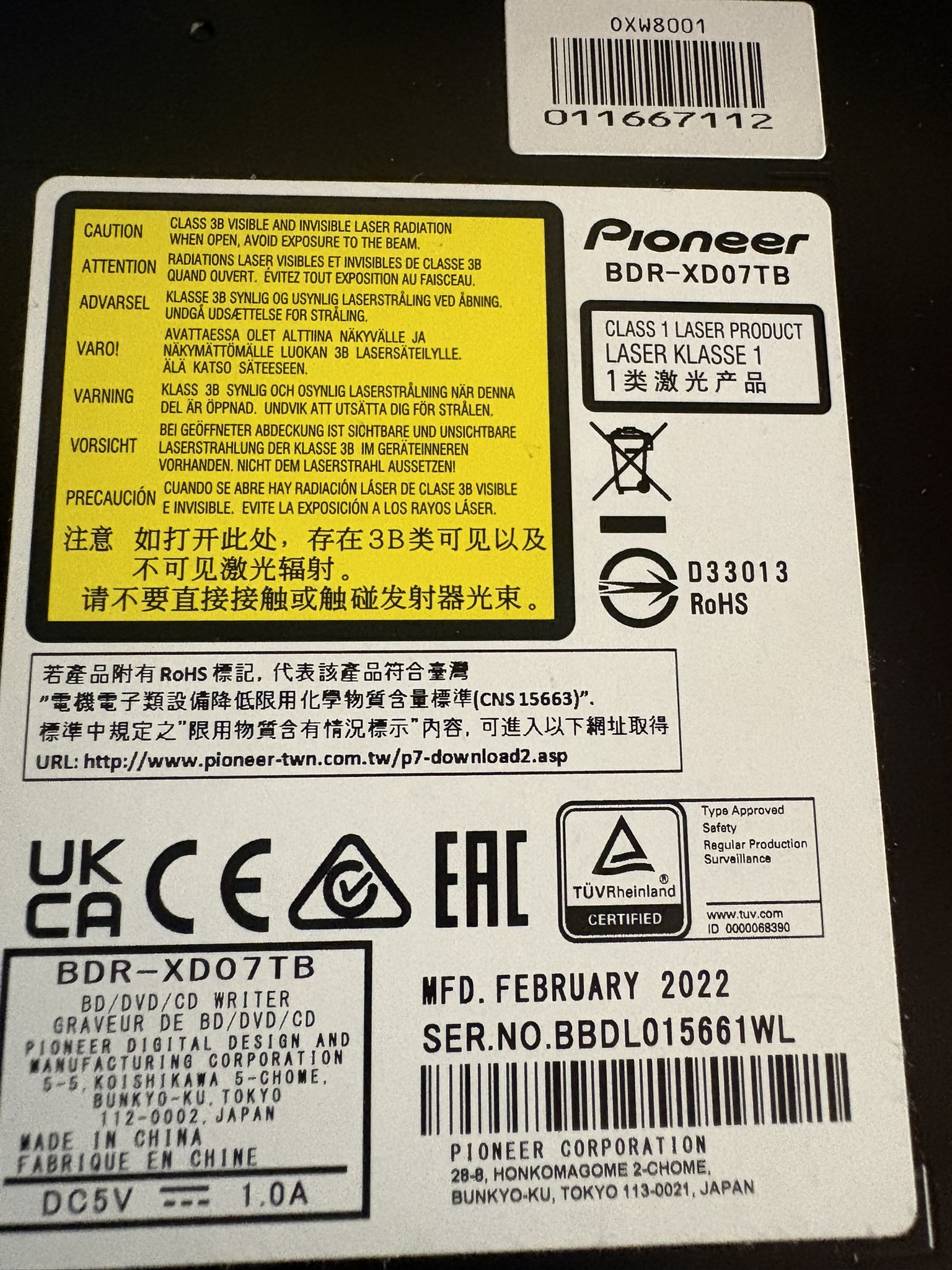

Hi, here are some photos of the spindle:

https://blacklight.fi/~zordiack/IMG_3723.JPEG

https://blacklight.fi/~zordiack/IMG_3724.JPEG

https://blacklight.fi/~zordiack/IMG_3725.JPEG

I did open the drive already to see if it is possible to exchange the spindle/motor, but the plastic black part is I think glued to the motor itself (the metal round cylinder part). The motor is part of drive assembly board, which has at least one soldered connection which I am not that eager to try to replace, also I could not find the spare part anywhere.

Maybe the only feasible option would be to carefully break the black part away from top and glue a replacement in place. I would be interested in trying to replace the spindle if it fits and paying for the spare.

Edit. I'm having trouble adding pics in the post, so I will add links instead

BR, zordiack

[skyrider]

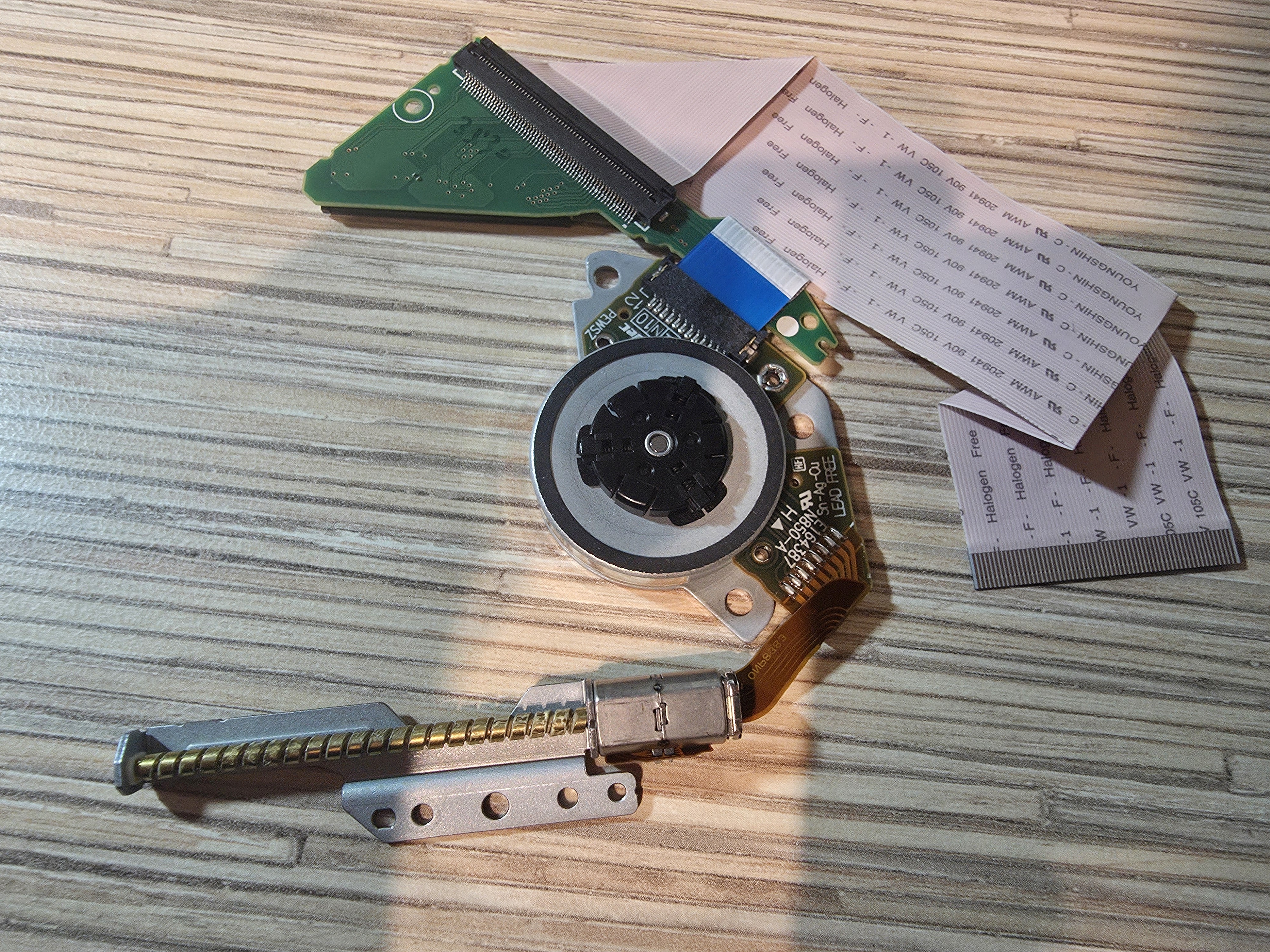

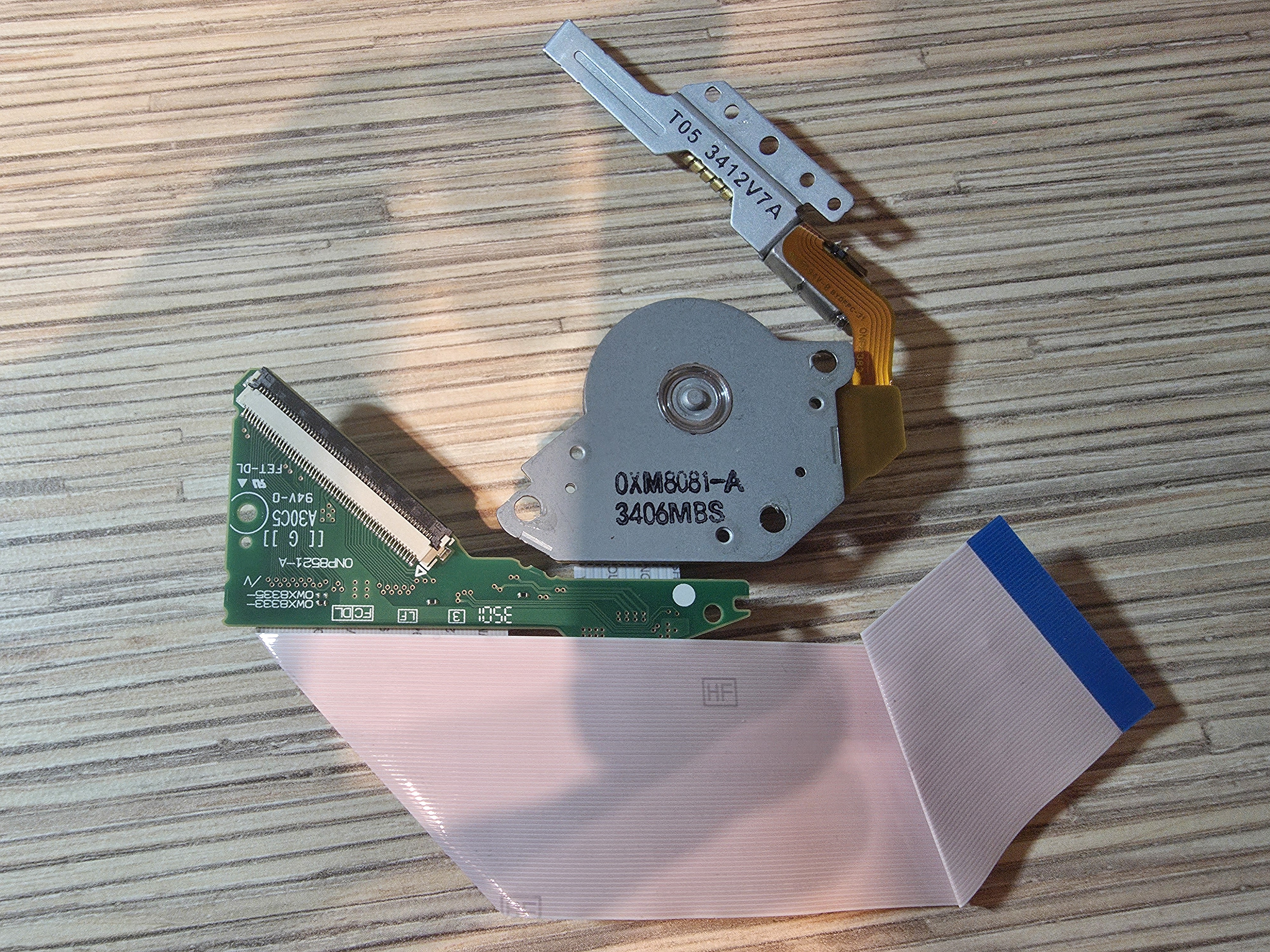

Hello, I removed the spindle motor from the drive. You can find the photos below. If the markings are similar or identical, then the part will most likely be compatible with the BDR-XD07.

https://i.postimg.cc/tyBy6K7s/spindle-motor-1.jpg
https://i.postimg.cc/Skj4fgzg/spindle-motor-2.jpg

[zordiack]

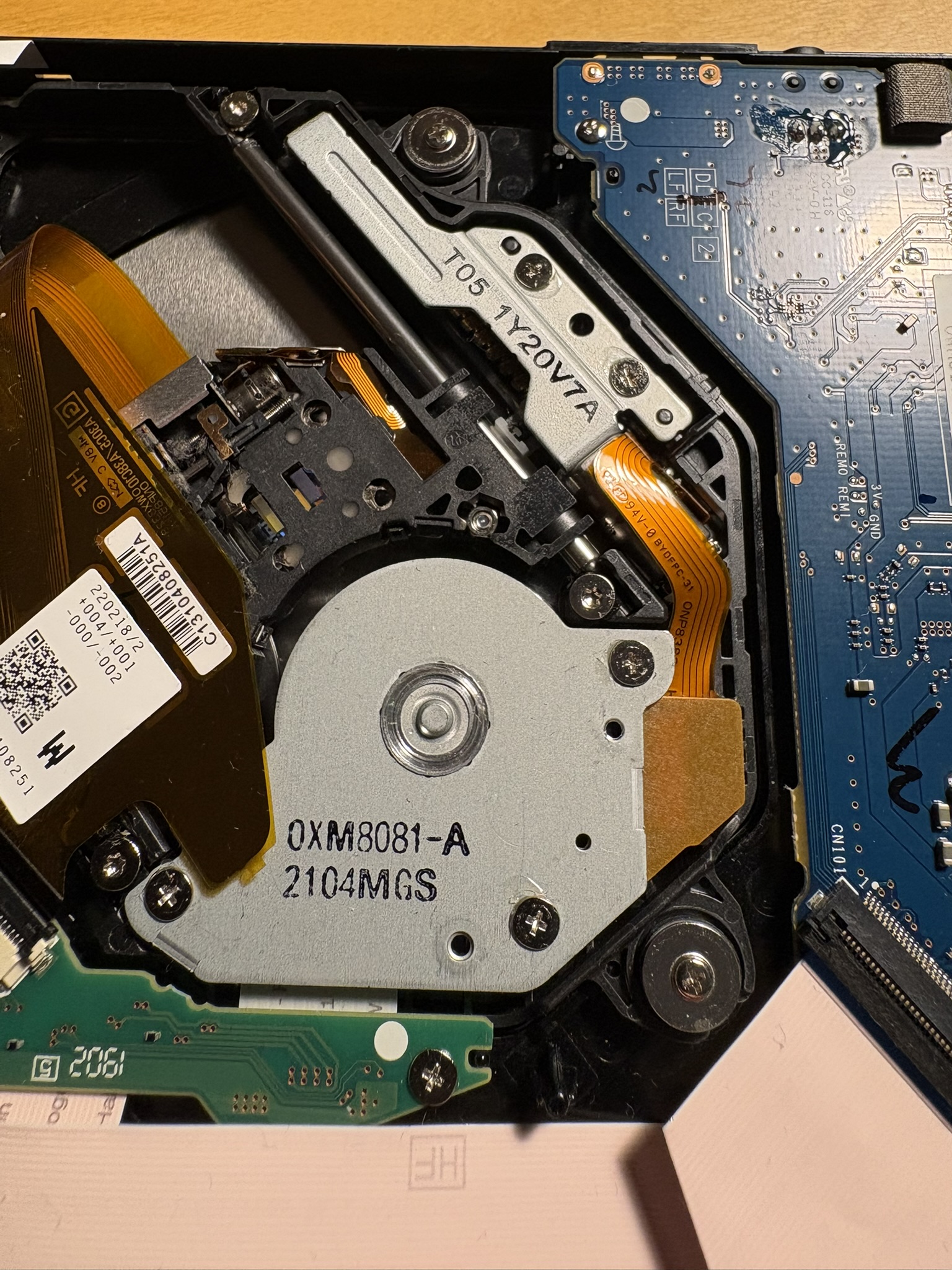

Hi, well the part does look similar, but the part numbers are not identical:

https://blacklight.fi/~zordiack/IMG_3718.JPEG

I'm not sure would it work, physically the motor and spindle do look similar.

BR, zordiack

[skyrider]

In my opinion, it's the same unit. The motor has a different serial number, but the main model designation matches.
