Asus BW-16D1X-U

[MartyMcNuts]

Somehow my image did not attach.
Not sure how to get it properly in an image tag or attachment. So I uploaded it here:
https://imgur.com/a/IplDcrm

You don't add attachments here. You should upload somewhere else like you have done.

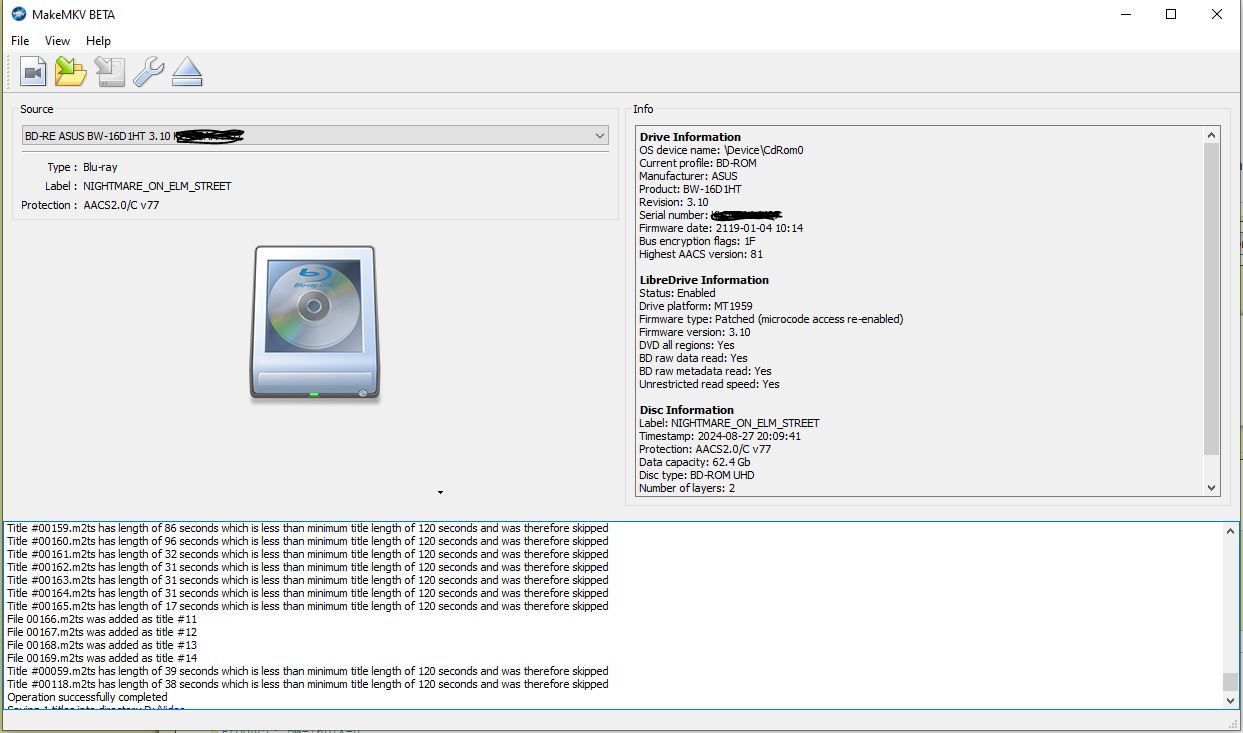

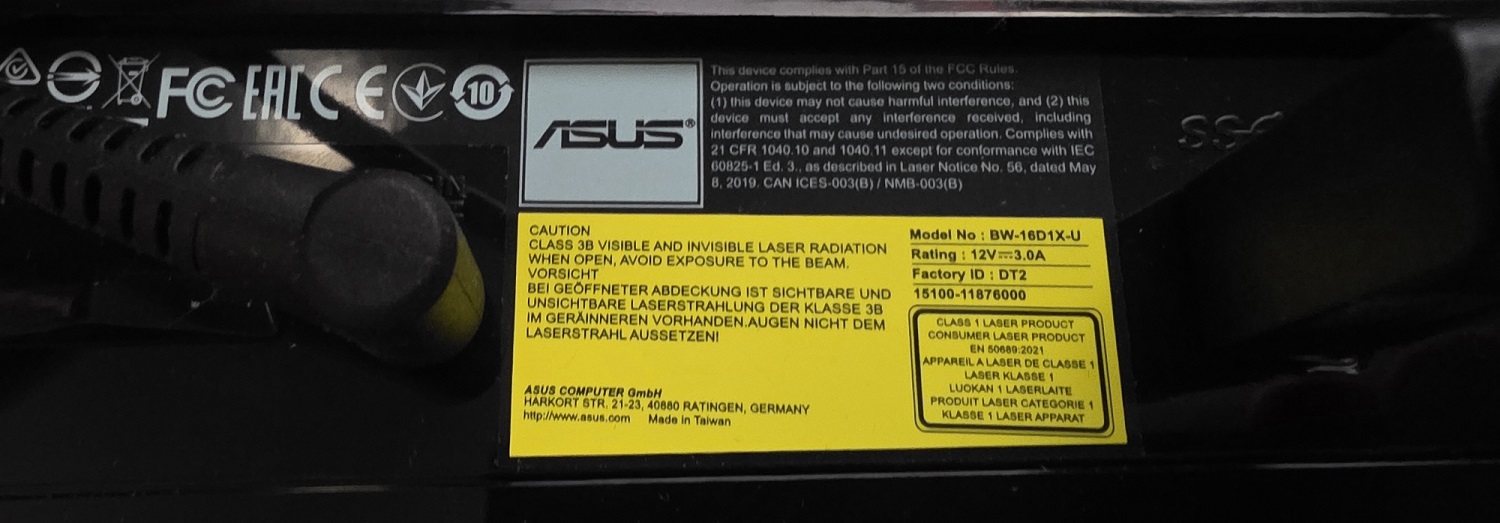

Why are you showing us the label. It is not relevant. We only need to see the drive info & libredrive info sections from MakeMKV which you have already provided.

Just email in the firmware dump as requested and then you can flash it as I already said.

[Assirock]

Hi. I just purchased a new Asus BW-16D1H-U PRO Can someone help me make it support UHD? Thanks you

Drive Information
OS device name: D:
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: E113
Serial number:
Firmware date: 2020-07-21
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8F00
Firmware version: ID76

[Billycar11]

Hi. I just purchased a new Asus BW-16D1H-U PRO Can someone help me make it support UHD? Thanks you

Drive Information
OS device name: D:
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: E113
Serial number:
Firmware date: 2020-07-21
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8F00
Firmware version: ID76

yes just email me that drive info see below for email

[sanumaj]

Hi Folks

Just recied a new Asus BW-16D1X-U : PIONEER BDR-212T (RS8F00). This is the MakeMKV summary on my BluRay Drive. Reads Blu Ray just fine but 4K UHD is no go. Can you help please? Confused as LibreDrive Status is Enabled...

Drive Information
OS device name: \Device\CdRom1
Current profile: BD-ROM
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: E113
Serial number: DIDL127631WL
Firmware date: 2020-07-21
Bus encryption flags: 1B
Highest AACS version: 77

LibreDrive Information
Status: Enabled
Drive platform: RS8F00
Firmware name: PIONEER BDR-212T
Firmware type: Original (unpatched)
Firmware version: E113/ID76
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

Thanks in advance!

[Billycar11]

Hi Folks

Just recied a new Asus BW-16D1X-U : PIONEER BDR-212T (RS8F00). This is the MakeMKV summary on my BluRay Drive. Reads Blu Ray just fine but 4K UHD is no go. Can you help please? Confused as LibreDrive Status is Enabled...

Drive Information
OS device name: \Device\CdRom1
Current profile: BD-ROM
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: E113
Serial number: DIDL127631WL
Firmware date: 2020-07-21
Bus encryption flags: 1B
Highest AACS version: 77

LibreDrive Information
Status: Enabled
Drive platform: RS8F00
Firmware name: PIONEER BDR-212T
Firmware type: Original (unpatched)
Firmware version: E113/ID76
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

Thanks in advance!

sure email me that info and all others email me no need to post your info here just reach out to me directly
see below for email

[dewille]

Hi guys,

If my drive can be flashed to read UHD movies pls let me know. Many thanks

Code: Select all

Drive Information
OS device name: /dev/rdisk4
Current profile: BD-RE
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: E113
Serial number: CKDL103572WL
Firmware date: 2020-07-21
Bus encryption flags: 1B

LibreDrive Information
Status: Enabled
Drive platform: RS8F00
Firmware name: PIONEER BDR-212T
Firmware type: Original (unpatched)
Firmware version: E113/ID76
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

Disc Information
Label: MAC_BACKUPS_1___PART_3_OF_5
Timestamp: 2010-10-23 18:53:28
Data capacity: 23.30 Gb
Disc type: BD-RE
Number of layers: 1
Channel bit length: 74,5 nm (25.0 GB max. per layer)

[Billycar11]

Hi guys,

If my drive can be flashed to read UHD movies pls let me know. Many thanks

Code: Select all

Drive Information
OS device name: /dev/rdisk4
Current profile: BD-RE
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: E113
Serial number: CKDL103572WL
Firmware date: 2020-07-21
Bus encryption flags: 1B

LibreDrive Information
Status: Enabled
Drive platform: RS8F00
Firmware name: PIONEER BDR-212T
Firmware type: Original (unpatched)
Firmware version: E113/ID76
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

Disc Information
Label: MAC_BACKUPS_1___PART_3_OF_5
Timestamp: 2010-10-23 18:53:28
Data capacity: 23.30 Gb
Disc type: BD-RE
Number of layers: 1
Channel bit length: 74,5 nm (25.0 GB max. per layer)

sure email me that info and all others email me no need to post your info here just reach out to me directly
see below for email

[sirmeowthius]

Hi, new here. Just wanted to say that this ASUS BW-16D1X-U External (M-Disc Compatible) drive is definitely flashable to the LibreDrive Firmware. Mine was manufactured in 2023, didnt even bother shucking the casing to get to the drive inside.

Backed up the base firmware with the SDFTool Flasher.
Flashed it with - DE_ASUS_BW-16D1HT_3.10_MK.bin
Waited about 10 seconds for it to complete. Turned it off and unplugged the USB.
Rebooted my PC for safe measure.
Then I archived Justice League 4K 2-disc set without issue.

I did do a OmniDrive flash right after to test it out as well, then after that I flashed back to LibreDrive CFW.

What I did notice is that jumping between 4K/UHD and HD Blurays it may cause the drive to hang up and cause I/O read errors. Could be that ive been archiving about 30+ discs today, and that the USB ports on my mobo are like please stop. Full PC shutdown for about 2 minutes cleared that up and I archived about 7 more discs so far since.

Hope this helps putting it on the compatibility list.
