Dolby Vision now possible through MP4 Mux.

Please post here for issues related to UHD discs
Gatorman
Posts: 81
Joined: Thu Feb 10, 2022 3:47 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by Gatorman »

RESET_9999 wrote:
Thu Oct 20, 2022 10:15 pm
Gatorman wrote:
Thu Oct 20, 2022 10:06 pm
All of my recent DaVinci Resolve generated RPUs have a min_pq value of 0. This includes variable aspect ratio files as well as cropped files. Am I doing something wrong?

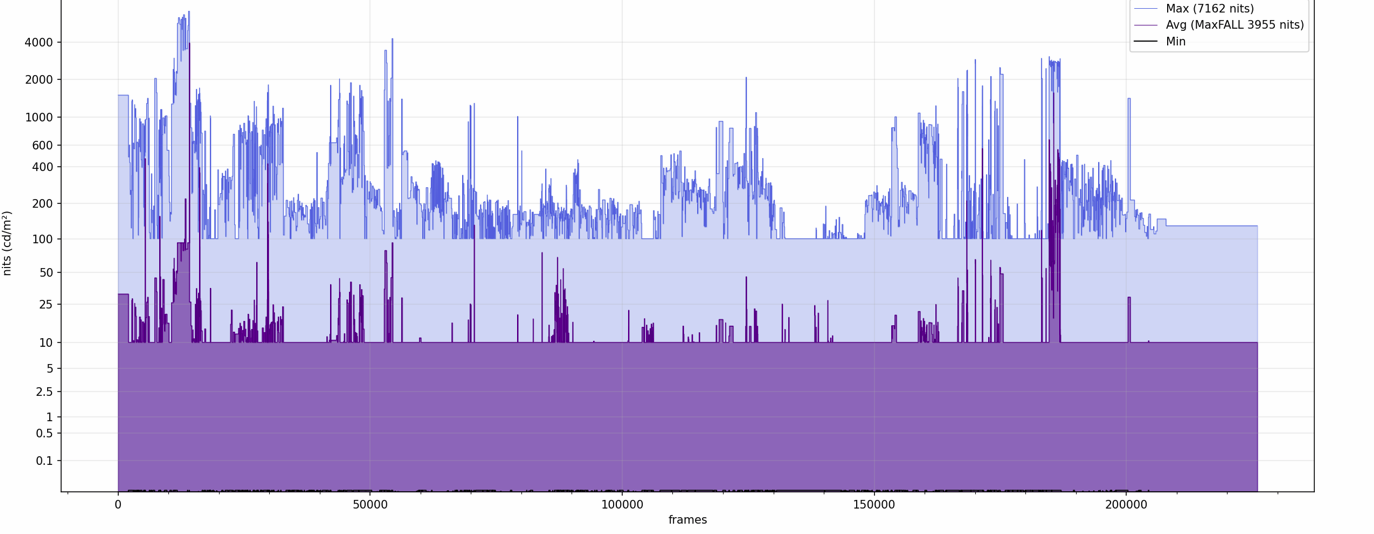

Did you plot L1 ? because if you just look at a random frame with the dovi_tool it can be hard to find one.
If you did your blanking(or timeline resolution) correctly it should not be always 0
I can see the values changing within Resolve. :D

I'm still working on getting the script to run correctly.
Last edited by Gatorman on Sat Oct 22, 2022 6:43 pm, edited 3 times in total.
More reasons to collect physical media. Ugoos AM6B+.
kazuma
Posts: 186
Joined: Fri Nov 08, 2019 9:51 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by kazuma »

reset_9999 deserves his own topic with his revolutunary tool. it's sad for newcomers to start in this topic that is already outdated.
RESET_9999
Posts: 2411
Joined: Mon Aug 05, 2019 7:12 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by RESET_9999 »

Gatorman wrote:
Fri Oct 21, 2022 11:08 pm
I'm still working on getting the script to run correctly.
yes, it's not easy to install, I struggled myself.

you have to install python and a couple of modules.
https://www.python.org/downloads/

you can install a module(ijson in that case) by typing this in a cmd window

Code: Select all

pip install ijson
Sorry for my English.
G5 / AM6B+ / Denon 7.2.4
DoVi_Scripts
DoVi Playback Devices
Gatorman
Posts: 81
Joined: Thu Feb 10, 2022 3:47 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by Gatorman »

RESET_9999 wrote:
Sat Oct 22, 2022 6:29 pm
Gatorman wrote:
Fri Oct 21, 2022 11:08 pm
I'm still working on getting the script to run correctly.
yes, it's not easy to install, I struggled myself.

you have to install python and a couple of modules.
https://www.python.org/downloads/

you can install a module(ijson in that case) by typing this in a cmd window

Code: Select all

pip install ijson

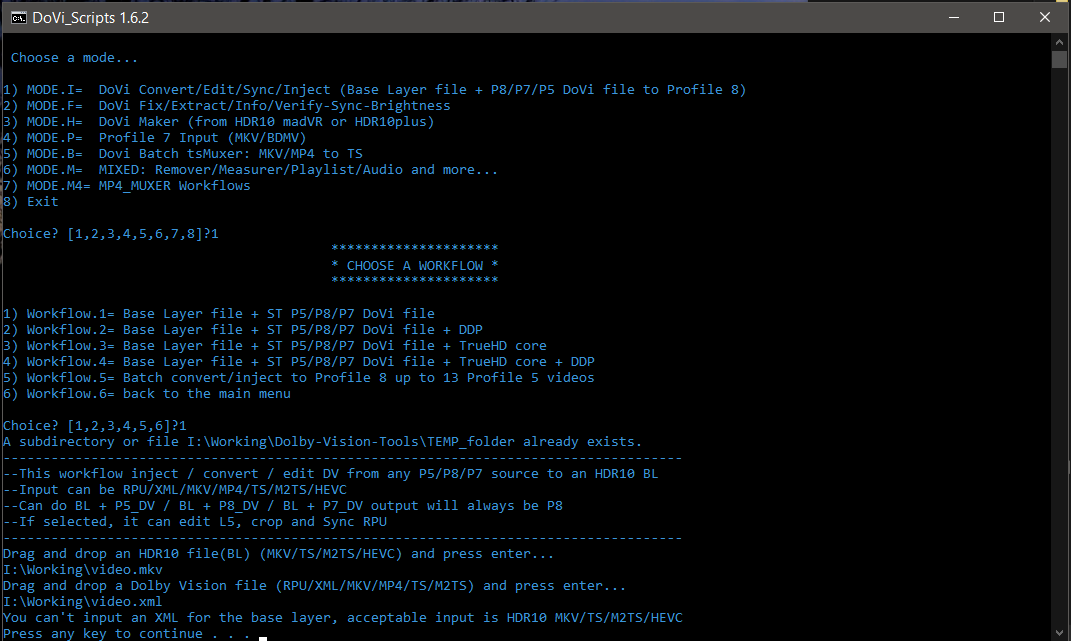

Got it! Thanks for your help.

Screenshot (724).png
Screenshot (724).png (148.97 KiB) Viewed 14064 times
More reasons to collect physical media. Ugoos AM6B+.
Gatorman
Posts: 81
Joined: Thu Feb 10, 2022 3:47 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by Gatorman »

@Reset_9999

Would it be possible to have a video.mkv.measurements file as an input file?
More reasons to collect physical media. Ugoos AM6B+.
RESET_9999
Posts: 2411
Joined: Mon Aug 05, 2019 7:12 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by RESET_9999 »

6-2-2 can do that.
Sorry for my English.
G5 / AM6B+ / Denon 7.2.4
DoVi_Scripts
DoVi Playback Devices
Gatorman
Posts: 81
Joined: Thu Feb 10, 2022 3:47 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by Gatorman »

RESET_9999 wrote:
Sat Oct 22, 2022 6:58 pm
6-2-2 can do that.
This workflow allows an already generated .measurements file? It's asking me for a video file. I'll have to get back to my workstation to get the error.
More reasons to collect physical media. Ugoos AM6B+.
RESET_9999
Posts: 2411
Joined: Mon Aug 05, 2019 7:12 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by RESET_9999 »

ha yes, I introduced a bug for that in the latest versions. you can try the older versions as 1.5.8, and it should work.
will fix next time
Sorry for my English.
G5 / AM6B+ / Denon 7.2.4
DoVi_Scripts
DoVi Playback Devices
kazuma
Posts: 186
Joined: Fri Nov 08, 2019 9:51 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by kazuma »

reset_9999

the muxing time of shooter and the godfather untouched bluray is very short, and the end TS file is only between 13GB and 17GB. what is the reason for this? (4-1-1)

i've selected the longest mpls file. i'm sure of that.
RESET_9999
Posts: 2411
Joined: Mon Aug 05, 2019 7:12 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by RESET_9999 »

kazuma wrote:
Sun Oct 23, 2022 10:00 am
i've selected the longest mpls file. i'm sure of that.
I doubt that because I just tried Shooter BD and there are two 20min small playlists and the main movie one.
I took the right one and got a normal 44gb TS.

So either you're out of HDD space on your output path or you selected the wrong playlist.
Sorry for my English.
G5 / AM6B+ / Denon 7.2.4
DoVi_Scripts
DoVi Playback Devices
Gatorman
Posts: 81
Joined: Thu Feb 10, 2022 3:47 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by Gatorman »

Does this comparison look typical? HDR10 Resolve generated DV.

https://slow.pics/c/fVBUu802
More reasons to collect physical media. Ugoos AM6B+.
RESET_9999
Posts: 2411
Joined: Mon Aug 05, 2019 7:12 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by RESET_9999 »

yes, as you can see madvr min_pq is always 0 which makes avg_PQ inaccurate.
Resolve's scene cut detection is also substantially better than madvr. With madVR, there will be (sometimes) one shot very bright and the next one(within the same scene) darker. I never had this issue with Resolve.
Sorry for my English.
G5 / AM6B+ / Denon 7.2.4
DoVi_Scripts
DoVi Playback Devices
kazuma
Posts: 186
Joined: Fri Nov 08, 2019 9:51 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by kazuma »

reset_9999

i did it again with shooter. now with screenshots:

https://ibb.co/q1ZL44M

https://ibb.co/6HKkGnk

https://ibb.co/gv1pB4k
Manixx2020beyound
Posts: 127
Joined: Thu Oct 08, 2020 5:19 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by Manixx2020beyound »

RESET_9999 wrote:
Sun Oct 23, 2022 2:53 pm
yes, as you can see madvr min_pq is always 0 which makes avg_PQ inaccurate.
Resolve's scene cut detection is also substantially better than madvr. With madVR, there will be (sometimes) one shot very bright and the next one(within the same scene) darker. I never had this issue with Resolve.
I’ve come to the conclusion that if we re analyze a movie that’s already graded scene by scene technically we are producing a diff graded result as well.(bc color decisions are being decided by present graded elements)
& that’s why they are diff types of analysis modes some of us have only experienced 1type of analysis mode.
RESET_9999
Posts: 2411
Joined: Mon Aug 05, 2019 7:12 pm

Re: Dolby Vision now possible through MP4 Mux.

Post by RESET_9999 »

100% non-sense.
L1 metadata generation is just pixels brightness measurement(this is what the dovi L1 plot is). When you set your resolve project correctly you don't touch the original grade. it's like working with the master.
You could export it to 422 and then re-encode it to x265 and it would still be the same grade(unless you start playing with the colors and brightness).
Sorry for my English.
G5 / AM6B+ / Denon 7.2.4
DoVi_Scripts
DoVi Playback Devices
