Hi, my newly purchased a Verbatim Slimline drive currently cant rip certain DVDs and 4k Blurrays. A few do work, but I mostly use this specifc drives for 4k Blurrays and none of them worked.
Now, first of all, I could not find out if this drive is encrypted, and neither certain if the flashing shown here will work to enable LibreDrive. I downloaded the "All you need firmware pack" and the SDF Tool flasher already. Within the Firmware pack is a LG Slim BU40N, I assume that is the firmware required for this specifc drive. Am I missing something or coud I get started flashing using the flasher with the LG Slim Bu40N Firmware to enable LibreDrive?
Furthermore, from the list of encryped firmware I am uncertain if this drive is in fact coming with an encrypted firmware because I could not find the exact same one in the list but similar enough.
Drive Information
OS device name: D:
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: 1.05
Serial number: MO4P33E2415
Firmware date: 2124-04-23 13:47
Bus encryption flags: 17
Highest AACS version: 82
LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959
No disc inserted
Excuse me for the silly questions. I would prefer not to instantly brick my newly purchased drive, given I already own an other drive which is not for 4k Blurrays and just the normal resolution.
As the drive is manufactured in 2024 the firmware is encrypted. SDFTool flasher will set this oprion automatically and you should flash BU40N 1.03 as recommended firmware. If you are using other ripping software besides Makemkv you should flash 1.00. The files are in the "all you need firmware pack" in the SDFTool post by Marty.
First time trying this with a UHD drive (my old bluray still works like a champ)
The PC looks like it recognises discs ok, but in MakeMKV it doesn't look right.
It sees the drive as:
Drive Information
OS device name: F:
Manufacturer: 000000
Product: 9999999999999999
Revision: 1.05
Serial number: MOFP7MD4032
Firmware date: 2124-04-23 13:47
Bus encryption flags: 17
Highest AACS version: 81
The drive label says : Hitachi-LG BU40N
Manufactured: July 2025
Firmware Version 1.05

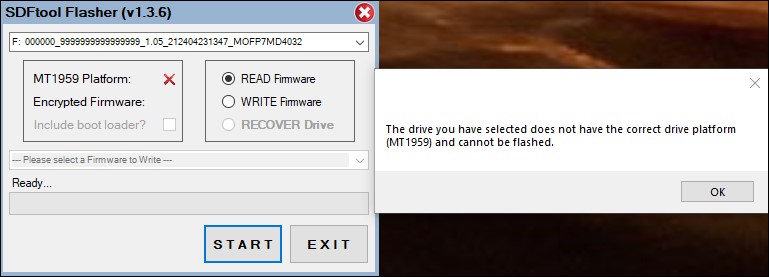

The SDFTool pops up an error when I tried to backup the fimware:
"The drive you have selected does not have the correct drive platform (MT 1959) and cannot be flashed"
Screenshot 2025-12-06 211101.jpg (46.29 KiB) Viewed 1191 times
Would I be right in thinking the problem is the cable I'm got for it?
It's SATA > USB
First time trying this with a UHD drive (my old bluray still works like a champ)
The PC looks like it recognises discs ok, but in MakeMKV it doesn't look right.
It sees the drive as:
Drive Information
OS device name: F:
Manufacturer: 000000
Product: 9999999999999999
Revision: 1.05
Serial number: MOFP7MD4032
Firmware date: 2124-04-23 13:47
Bus encryption flags: 17
Highest AACS version: 81
The drive label says : Hitachi-LG BU40N
Manufactured: July 2025
Firmware Version 1.05
The SDFTool pops up an error when I tried to backup the fimware:
"The drive you have selected does not have the correct drive platform (MT 1959) and cannot be flashed"
Screenshot 2025-12-06 211101.jpg
Would I be right in thinking the problem is the cable I'm got for it?
It's SATA > USB
I have a BP60NB10 drive that I flashed and it was working great. Drive stated having issues reading discs, so LG said I can send it back to get it replaced since it is under warranty. But in order to do that I need to flash the original firmware back on it. Is that something I can do? If so, how? I was looking at the recover option, but when it comes to selecting the correct new firmware, I didn't know what I would choose.
All working as hoped. However, if you try to flash the drive while the disk drive tray is ejected SDFTool throws an error with an error number. Would it be possible to check the status of the drive tray and throw a more human readable error if it's currently out?
First time trying this with a UHD drive (my old bluray still works like a champ)
The PC looks like it recognises discs ok, but in MakeMKV it doesn't look right.
Returned the drive and replaced it with a Verbatim 43888 ( https://www.amazon.co.uk/dp/B07MTP9VKX )
Much much nicer drive and comes with the cables and adapter options.
Easy firmware backup then install of DE_LG_BU40N_1.03_MK.bin
Currently testing with our Apollo11 UHD disk and it's doing its thing.
Thanks @Billycar11 for the nudge in the right direction
Pre:
Drive Information
OS device name: F:
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: 1.05
Serial number: poipoipopoi
Firmware date: 2124-04-23 13:47
Bus encryption flags: 17
Highest AACS version: 81
Post:
Drive Information
OS device name: F:
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: 1.03
Serial number: poipoipopoi
Firmware date: 2118-10-24 19:34
Bus encryption flags: 17
Highest AACS version: 81
All working as hoped. However, if you try to flash the drive while the disk drive tray is ejected SDFTool throws an error with an error number. Would it be possible to check the status of the drive tray and throw a more human readable error if it's currently out?
Um, no. It is just a GUI for the sdftool CLI so whatever error it spits out is it.
Cheers
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW): https://uhdenableddrives.com
When I load up SDFtool Flasher 1.3.6
it says my drive isnt a MT1959?
How do I fix this? It should be a 1959 drive
Drive Information
OS device name: J:
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: 1.02
Serial number: MO7P5692121
Firmware date: 2120-12-01 17:16
Bus encryption flags: 1F
LibreDrive Information
Status: Possible (with patched firmware)
Drive platform: MT1959
Harware support: Yes
Firmware support: No
Firmware type: Original (patched version available)
Firmware version: 1.02
DVD all regions: Possible (with patched firmware)
BD raw data read: Possible (with patched firmware)
BD raw metadata read: Possible (with patched firmware)
Unrestricted read speed: Possible (with patched firmware)
is something wrong?
Last edited by merlinthesage on Wed Dec 10, 2025 6:16 am, edited 1 time in total.

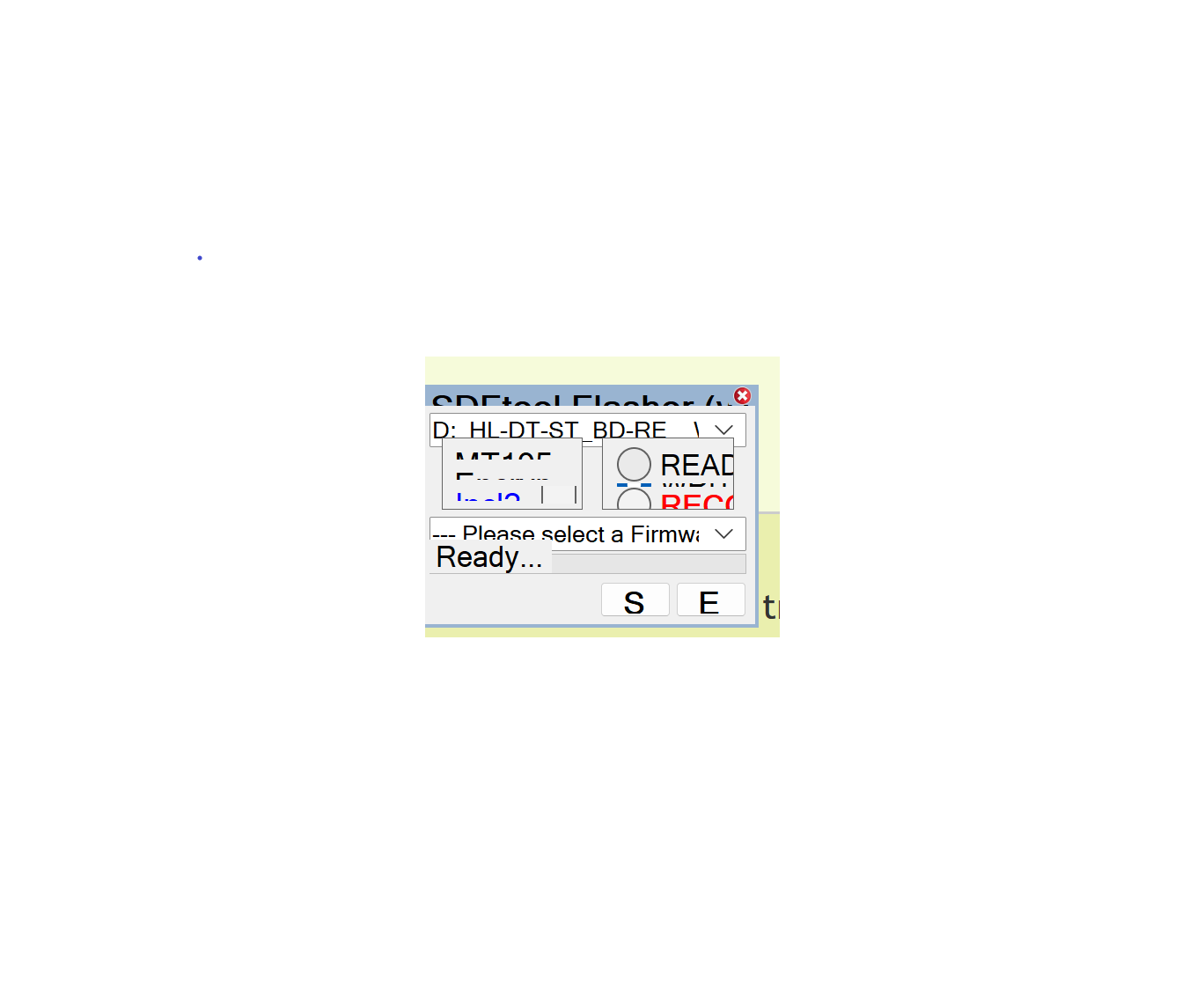

I downloaded the sdftool flasher for my PC to try and use it for my Blu-Ray player, but when I open the tool, the box opens like this and I can't resize it to use it I have a Windows 11 PC.
Attachments
sdftool weird size.png (22.05 KiB) Viewed 818 times
I downloaded the sdftool flasher for my PC to try and use it for my Blu-Ray player, but when I open the tool, the box opens like this and I can't resize it to use it I have a Windows 11 PC.
NOTE: If the GUI looks a bit deformed (happens on a 4k monitor), you can right click the exe and select properties. In the compatibility tab, click "Change high DPI settings" then under "High DPI scaling override" tick the box and select "System (Enhanced)" in the dropbox.
I downloaded the sdftool flasher for my PC to try and use it for my Blu-Ray player, but when I open the tool, the box opens like this and I can't resize it to use it I have a Windows 11 PC.
NOTE: If the GUI looks a bit deformed (happens on a 4k monitor), you can right click the exe and select properties. In the compatibility tab, click "Change high DPI settings" then under "High DPI scaling override" tick the box and select "System (Enhanced)" in the dropbox.
Thank you Marty, I finally received my UHD blu rays from storage and the Buffalo flashed drive works a treat - faster than expected. I really do appreciate all the work you do! Be lucky.
[quote=McMurphy66 post_id=189135 time=<a href="tel:1764735582">1764735582</a> user_id=104006]
Apologies if this is in the wrong thread…newbie post but not new to the amazing makemkv software.
Bought the Buffalo BRUHD-PU3-BK. Read through the threads and wasn’t sure if it was BUN-40 flash process. I’m confused what to use, not done this before.
Thanks all.
Drive Information
OS device name: E:
Manufacturer: BUFFALO
Product: Optical Drive
Revision: BN14
Serial number:
Firmware date: 2121-06-21 13:33
Bus encryption flags: 1F
Highest AACS version: 48
LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959
No disc inserted
Yes, it's a BU40N. You can flash it to BU40N 1.03-MK.
Thank you Marty, I really appreciate your reply.
I’ll use the LG BU40N 1.03mk. Is it simply ‘select drive’ “select write’ open this firmware from the pack and start?
[/quote]
Thank you Marty, I finally received my UHD blu rays from storage and the Buffalo flashed drive works a treat - faster than expected. I really do appreciate all the work you do! Be lucky.
[quote=McMurphy66 post_id=189135 time=<a href="tel:1764735582">1764735582</a> user_id=104006]
Apologies if this is in the wrong thread…newbie post but not new to the amazing makemkv software.
Bought the Buffalo BRUHD-PU3-BK. Read through the threads and wasn’t sure if it was BUN-40 flash process. I’m confused what to use, not done this before.
Thanks all.
Drive Information
OS device name: E:
Manufacturer: BUFFALO
Product: Optical Drive
Revision: BN14
Serial number:
Firmware date: 2121-06-21 13:33
Bus encryption flags: 1F
Highest AACS version: 48
LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959
No disc inserted
Yes, it's a BU40N. You can flash it to BU40N 1.03-MK.
Thank you Marty, I really appreciate your reply.
I’ll use the LG BU40N 1.03mk. Is it simply ‘select drive’ “select write’ open this firmware from the pack and start?
[/quote]
Yep.
Cheers
----------------------------------------------------------------------------------------------------------------------------
