Dolby Vision now possible through MP4 Mux.

[Woodstock]

I see I hope future improve version of makemkv could support different type of subtitle format

DV in MKV is really the only hope for that - MP4 standards are outside the control of anyone "poor". The most radical change driven by anyone outside the standards body on that front was driven in partby Apple, with MP4 chapters via a special subtitle track in to "m4v" files. Nero introduced a standardized (but not standard) way to put VOBSUB subtitles from DVDs in as a track.

See https://en.wikipedia.org/wiki/MPEG-4_Pa ... ta_streams for what can be in an MP4.

[olevelo]

Subtitle types you can put in an MP4 file are very limited. Other than timed text and closed captioning, everything else depends on the player understanding a non-standard extension.

I see I hope future improve version of makemkv could support different type of subtitle format

Makemkv has nothing to do with mp4.

[chrisandy]

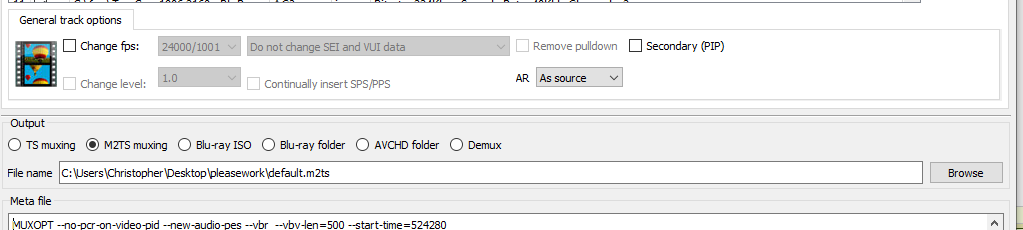

Trying to achieve this but unfortunately level is grayed out for me - is there something obvious I am missing?

Annotation 2020-05-31 232956.png

Don't download latest nigthly of tsMuxer, but this one:

Code: Select all

https://bintray.com/justdan96/tsMuxer/tsMuxerGUI-Nightly/2020-03-30--02-11-36#files

it will create dvhe.05 instead dvhe.06...

Unfortunately still both unable to change the level # and I'm still only getting HDR10 instead of DV.

Here is my set up:

Apple TV 4K
Infuse App

Here is what I am doing:

Use Yuescope's tool to extract Base Layer and Extended Layer
Add those to TSMuxer
Add playlist file to TSMuxer
Remove the two video files from the playlist file, leaving the .hevc and the audio files
Create a .m2ts file

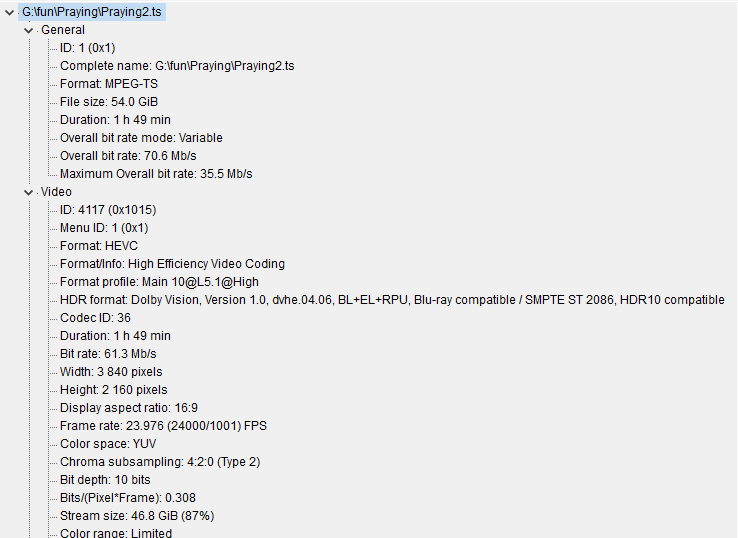

That .m2ts checks out in Mediainfo but it does not play as Dolby Vision in the Infuse app.

[Angryunibrow]

Trying to achieve this but unfortunately level is grayed out for me - is there something obvious I am missing?

Annotation 2020-05-31 232956.png

Don't download latest nigthly of tsMuxer, but this one:

Code: Select all

https://bintray.com/justdan96/tsMuxer/tsMuxerGUI-Nightly/2020-03-30--02-11-36#files

it will create dvhe.05 instead dvhe.06...

Unfortunately still both unable to change the level # and I'm still only getting HDR10 instead of DV.

Here is my set up:

Apple TV 4K
Infuse App

Here is what I am doing:

Use Yuescope's tool to extract Base Layer and Extended Layer
Add those to TSMuxer
Add playlist file to TSMuxer
Remove the two video files from the playlist file, leaving the .hevc and the audio files
Create a .m2ts file

That .m2ts checks out in Mediainfo but it does not play as Dolby Vision in the Infuse app.

Are you using -mode 2 with Yuescopes tool?
You must to create a profile 5 compliant file.

[sonysg]

I see I hope future improve version of makemkv could support different type of subtitle format

DV in MKV is really the only hope for that - MP4 standards are outside the control of anyone "poor". The most radical change driven by anyone outside the standards body on that front was driven in partby Apple, with MP4 chapters via a special subtitle track in to "m4v" files. Nero introduced a standardized (but not standard) way to put VOBSUB subtitles from DVDs in as a track.

See https://en.wikipedia.org/wiki/MPEG-4_Pa ... ta_streams for what can be in an MP4.

I see thanks for the insight
mkv is really a good container only thing it does not support DV yet

[sonysg]

Dear all,

I'm using OPPO 205 and Sony X950G

I have a problem when playing Dolby Vision disc or MP4 muxed Dolby Vision files

How could we enforced film to full screen(No Black bar) when play back DV contains? It said this operation is not permitted when I pressed "Zoom" on the Oppo's remote

I could do full screen easily on HDR10 but not in Dolby Vision format, only Full screen Dolby Vision contain could (i.e BumbleBee, Transformer 4) I wish I could to do that for every Dolby Vision titles to enhance the movie viewing experience

How to we bypass this restriction? it could because of the metadata of second layer(1920*1080) of Dolby Vision contains prevent this to be happened, because muxing Dolby Vision using MP4 container is possible now, I would like to save hard disk space and get rid of black bar whenever possible, Does MakeMKV allow or maximise the full screen properties when muxing in MP4 format?

Looking forward for your suggestion

I'm sorry to bumped up this question but no one seem to be giving me an overall idea on this
Is this restriction on the player itself or the DV authoring prevent the "Zoom" happening but its possible still on HDR10 contains

[chrisandy]

Don't download latest nigthly of tsMuxer, but this one:

Code: Select all

https://bintray.com/justdan96/tsMuxer/tsMuxerGUI-Nightly/2020-03-30--02-11-36#files

it will create dvhe.05 instead dvhe.06...

Unfortunately still both unable to change the level # and I'm still only getting HDR10 instead of DV.

Here is my set up:

Apple TV 4K
Infuse App

Here is what I am doing:

Use Yuescope's tool to extract Base Layer and Extended Layer
Add those to TSMuxer
Add playlist file to TSMuxer
Remove the two video files from the playlist file, leaving the .hevc and the audio files
Create a .m2ts file

That .m2ts checks out in Mediainfo but it does not play as Dolby Vision in the Infuse app.

Are you using -mode 2 with Yuescopes tool?
You must to create a profile 5 compliant file.

I did use -mode 2. I am/was unable to figure out how to create a profile 5 compliant file though.

[jlpsvk]

jesus... just mux it with version I linked.... you don't need to change "level" in tsMuxer.

[seleste]

Strange things started happening with mp4mux - on some (!!!) movies when trying to build just the dual layer video .mp4 file (BL+EL), the window blinks for a second and just creates an output .mp4 with zero length. On other movies works fine.
Been using that version for over a year with no problems.
Anyone got that behaviour, what's the reason for that? And how to fix it?

[chrisandy]

jesus... just mux it with version I linked.... you don't need to change "level" in tsMuxer.

Thanks - I realized my error soon before you posted

Edit #3: Got the .ts file to work with DV on Plex for Shield but it's constantly stuttering. Is this a KP?

Annotation 2020-06-04 225541.png (33.36 KiB) Viewed 21652 times

[jlpsvk]

jesus... just mux it with version I linked.... you don't need to change "level" in tsMuxer.

Thanks - I realized my error soon before you posted

Edit #3: Got the .ts file to work with DV on Plex for Shield but it's constantly stuttering. Is this a KP?

Annotation 2020-06-04 225541.png

you need to use BL+RPU, not BL+EL+RPU (MODE 2 of tool)

[VictorLemon]

Hello, does anyone know how to add subtitles to the MP4 container without losing the DV?

a greeting

[flashback8]

Dear all,

I'm using OPPO 205 and Sony X950G

I have a problem when playing Dolby Vision disc or MP4 muxed Dolby Vision files

How could we enforced film to full screen(No Black bar) when play back DV contains? It said this operation is not permitted when I pressed "Zoom" on the Oppo's remote

I could do full screen easily on HDR10 but not in Dolby Vision format, only Full screen Dolby Vision contain could (i.e BumbleBee, Transformer 4) :( I wish I could to do that for every Dolby Vision titles to enhance the movie viewing experience

How to we bypass this restriction? it could because of the metadata of second layer(1920*1080) of Dolby Vision contains prevent this to be happened, because muxing Dolby Vision using MP4 container is possible now, I would like to save hard disk space and get rid of black bar whenever possible, Does MakeMKV allow or maximise the full screen properties when muxing in MP4 format?

Looking forward for your suggestion

I'm sorry to bumped up this question but no one seem to be giving me an overall idea on this
Is this restriction on the player itself or the DV authoring prevent the "Zoom" happening but its possible still on HDR10 contains

It's due to the processing chips being underpowered (or so Oppo claimed long ago). The 203/205 replacements presumably would've addressed that flaw, and others.

[shawnc22]

jesus... just mux it with version I linked.... you don't need to change "level" in tsMuxer.

Thanks - I realized my error soon before you posted

Edit #3: Got the .ts file to work with DV on Plex for Shield but it's constantly stuttering. Is this a KP?

Annotation 2020-06-04 225541.png

you need to use BL+RPU, not BL+EL+RPU (MODE 2 of tool)

No you don't for the Shield and mode 2 of yusecope's tool gives you BL+EL+RPU, not BL+RPU.

[sonysg]

Dear all,

I'm using OPPO 205 and Sony X950G

I have a problem when playing Dolby Vision disc or MP4 muxed Dolby Vision files

How could we enforced film to full screen(No Black bar) when play back DV contains? It said this operation is not permitted when I pressed "Zoom" on the Oppo's remote

I could do full screen easily on HDR10 but not in Dolby Vision format, only Full screen Dolby Vision contain could (i.e BumbleBee, Transformer 4) I wish I could to do that for every Dolby Vision titles to enhance the movie viewing experience

How to we bypass this restriction? it could because of the metadata of second layer(1920*1080) of Dolby Vision contains prevent this to be happened, because muxing Dolby Vision using MP4 container is possible now, I would like to save hard disk space and get rid of black bar whenever possible, Does MakeMKV allow or maximise the full screen properties when muxing in MP4 format?

Looking forward for your suggestion

I'm sorry to bumped up this question but no one seem to be giving me an overall idea on this
Is this restriction on the player itself or the DV authoring prevent the "Zoom" happening but its possible still on HDR10 contains

It's due to the processing chips being underpowered (or so Oppo claimed long ago). The 203/205 replacements presumably would've addressed that flaw, and others.

Do you have news or link for that claimed its underpowered? Oppo already stop the production of 203/205 unlikely they would fix this issue on these model, too bad not much UHD Bluray player out there now
