SDFtool Flasher

[Boxcab]

I'm going to try to update the firmware on my ASUS BW-16D1X-U (a USB connected drive). Any suggestions, warnings or tricks that I need to be aware of??

Thanks in advance.


.

[Billycar11]

I'm going to try to update the firmware on my ASUS BW-16D1X-U (a USB connected drive). Any suggestions, warnings or tricks that I need to be aware of??

Thanks in advance.


.

if its mt1959
see op or guide below or email me or marty for the auto flasher

if its an a pioneer platform email me the drive info
see below for email

[Boxcab]

Here's the info on the drive from MakeMKV...

Drive Information
OS device name: E:
Manufacturer: ASUS
Product: BW-16D1X-U
Revision: A104
Serial number: KLOK36I***
Firmware date: 2119-01-04 10:47
Bus encryption flags: 1F
Highest AACS version: 76

LibreDrive Information
Status: Possible (with patched firmware)
Drive platform: MT1959
Harware support: Yes
Firmware support: No
Firmware type: Original (patched version available)
Firmware version: 0.A104W
DVD all regions: Possible (with patched firmware)
BD raw data read: Possible (with patched firmware)
BD raw metadata read: Possible (with patched firmware)
Unrestricted read speed: Possible (with patched firmware)

I do not see the "mt1959" reference anywhere here or on the drive.

Sorry for my knowledge void!


.

[Boxcab]

Son of a b...

Yes I see it does say MT1959.

Sorry.


.

[oldshield1]

Well, Bit confused.
I have the firmware pack my drive though internal to my pc is, I think, listed under slim external drives.

Drive Information
OS device name: E:
Current profile: DVD-ROM
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: U104
Serial number: xxxxxxxxx
Firmware date: 2121-11-17 09:58
Bus encryption flags: 1F
Highest AACS version: 82

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

I have written current firmare to my pc so i have a backup.
From you list of firmwares
do i use
DE_LG_BU40N_1.00.bin
or
DE_LG_BU40N_1.03_MK.bin
or something completely different?

thanks in advance.

[MartyMcNuts]

Well, Bit confused.
I have the firmware pack my drive though internal to my pc is, I think, listed under slim external drives.

Drive Information
OS device name: E:
Current profile: DVD-ROM
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: U104
Serial number: xxxxxxxxx
Firmware date: 2121-11-17 09:58
Bus encryption flags: 1F
Highest AACS version: 82

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

I have written current firmare to my pc so i have a backup.
From you list of firmwares
do i use
DE_LG_BU40N_1.00.bin
or
DE_LG_BU40N_1.03_MK.bin
or something completely different?

thanks in advance.

FYI, since your BU40N has encrypted firmware that backup only contains the important Cal data and is not the whole firmware file.

Also, since the firmware is encrypted, you must flash BU40N 1.03-MK first. You can leave it on that firmware if you only use MakeMKV or Xreveal for UHD ripping otherwise, if you use other UHD ripping software such as DVDFab then you should flash BU40N 1.00 next.

[oldshield1]

thank you so much.

command produced error code 0xff056103 when using the DE_LG_BU40N_1.03_MK.bin file

[MartyMcNuts]

thank you so much.

command produced error code 0xff056103 when using the DE_LG_BU40N_1.03_MK.bin file

Take the disc out of the drive and close the tray.

[oldshield1]

Goodness, I feel Dumb. yes, that worked.

[MrMegadeth99]

So I followed the steps to flash my BP50NB40 drive. Make MKV says Liberdrive is enabled but the drive still won't read 4K discs. Any idea what's wrong?

[d00zah]

So I followed the steps to flash my BP50NB40 drive. Make MKV says Liberdrive is enabled but the drive still won't read 4K discs. Any idea what's wrong?

Looks like you've only done the 1st part. See the "to flash the BP50NB40 SVC:NB52" notes in the 1st post of this topic.

[MrMegadeth99]

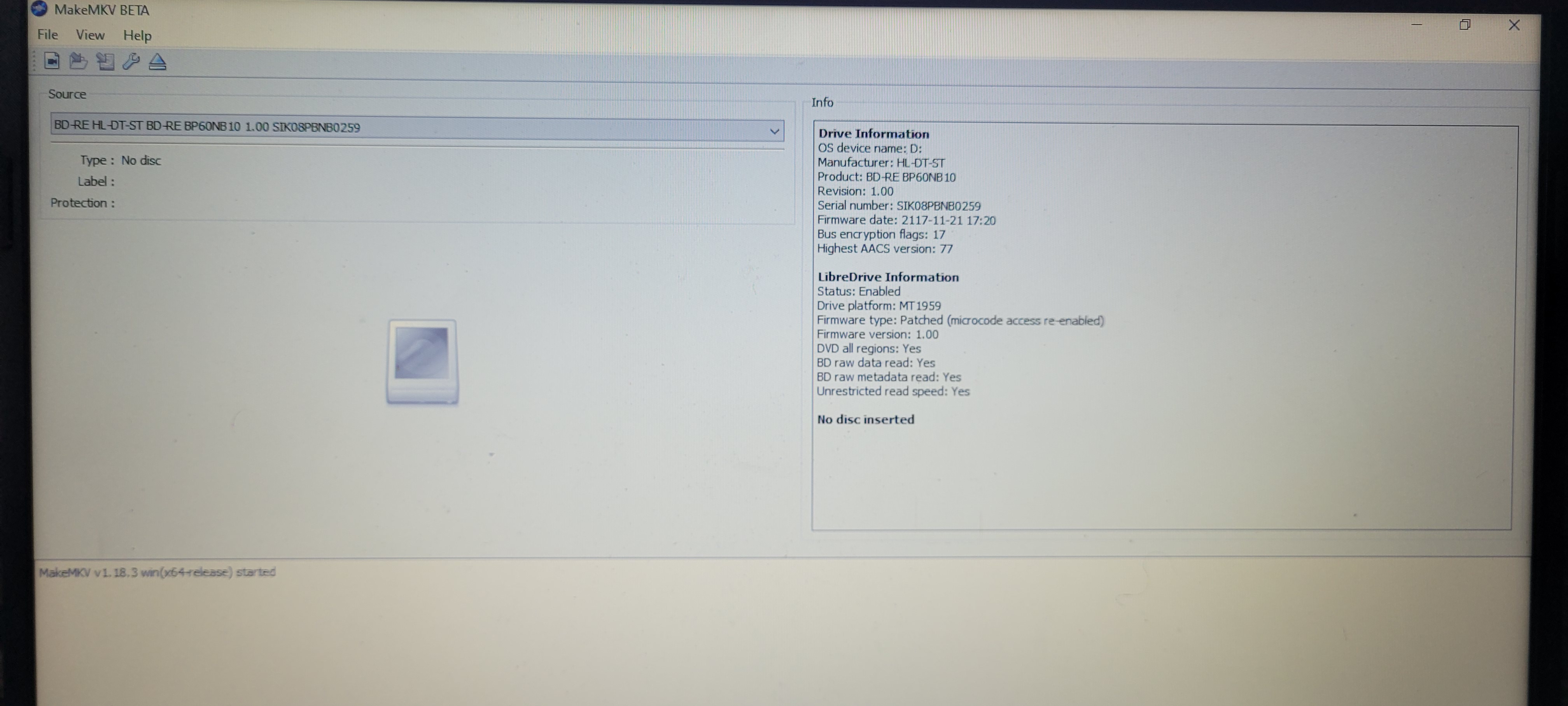

Ok I definitely did both parts now it looks like this but same issue, not reading 4K discs. Can anyone please assist?

[Billycar11]

So I followed the steps to flash my BP50NB40 drive. Make MKV says Liberdrive is enabled but the drive still won't read 4K discs. Any idea what's wrong?

whats the svc code on the drive if its not nb50 or 52 you bricked it

[MrMegadeth99]

Its NB52. Its not bricked it can still read blu rays.

[Billycar11]

Its NB52. Its not bricked it can still read blu rays.

That image differs from the other one you posted it showed as bp60 there
Now it's back to bp50

Go back to bp60 fw
