ASUS SBW-06D2X-U

[Coopervid]

Hi, Is this drive has update?

Drive Information
OS device name: H:
Current profile: BD-ROM
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: 1.11
Serial number: ...
Firmware date: 2023-04-20
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8511
Firmware version: ID22

PM is coming in a few minutes.

[plust]

Hi Coopervid,

I'm trying to enable LibreDrive.

Could you please do me a PM too?

Drive Information
OS device name: D:
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: 1.10
Serial number: ************
Firmware date: 2017-04-18
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8511
Firmware version: ID22

Thanks for your help

[Coopervid]

Hi Coopervid,

I'm trying to enable LibreDrive.

Could you please do me a PM too?

Drive Information
OS device name: D:
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: 1.10
Serial number: ************
Firmware date: 2017-04-18
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8511
Firmware version: ID22

Thanks for your help

PM sent.

[plust]

Thank you, Coopervid, for the information via PM.

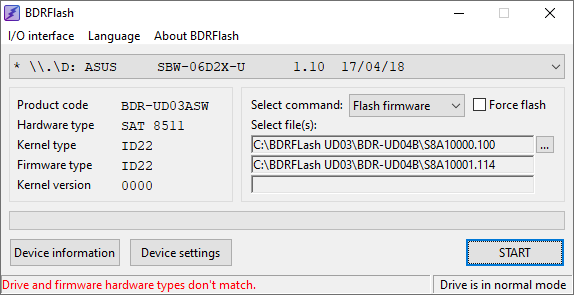

Please see the following error message in red.

[color=#FF0000]Drive and firmware hardware types don't match.[/color]

[attachment=1]2025-01-23 (1).png[/attachment]

Would this be a case of using Force flash, or may there be another explanation?

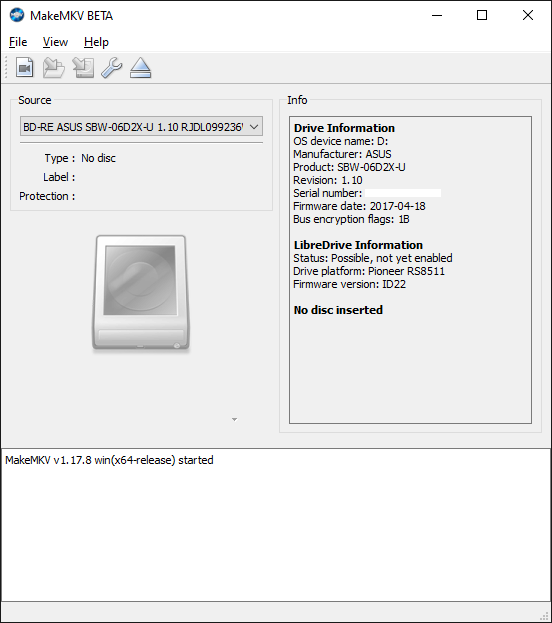

[attachment=0]2025-01-23 (2).png[/attachment]

I await your advice.

Warm regards

[MartyMcNuts]

Thank you, Coopervid, for the information via PM.

Please see the following error message in red.

Drive and firmware hardware types don't match.

2025-01-23 (1).png

Would this be a case of using Force flash, or may there be another explanation?

2025-01-23 (2).png

I await your advice.

Warm regards

Check the force flash box.

[Coopervid]

Thank you, Coopervid, for the information via PM.

Please see the following error message in red.

Drive and firmware hardware types don't match.

2025-01-23 (1).png

Would this be a case of using Force flash, or may there be another explanation?

2025-01-23 (2).png

I await your advice.

Warm regards

You didn't follow the tutorial. Shame on you!

[Yethidran]

yup, you have got to "Tick" the force flash box for it to work its magic.

[plust]

Ah!

Thank you, MartyMcNuts, Coopervid and Yethidran.

I just went back to the tutorial!

The results are amazing.

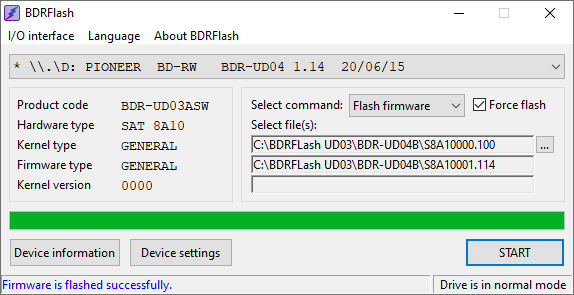

BDRFlash screenshot

2025-01-24 (1).png (15.74 KiB) Viewed 5749 times

MakeMKV REGISTERED screenshot

2025-01-24 (2).png (34.54 KiB) Viewed 5749 times

Best regards

[Tigerroll002]

Hi Coopervid,

I have the following drive:

Drive Information
OS device name: F:
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: 1.10
Serial number: ************
Firmware date: 2017-04-18
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8511
Firmware version: ID22

Can you please help me out as well?

[Coopervid]

Hi Coopervid,

I have the following drive:

Drive Information
OS device name: F:
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: 1.10
Serial number: ************
Firmware date: 2017-04-18
Bus encryption flags: 1B

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: Pioneer RS8511
Firmware version: ID22

Can you please help me out as well?

PM sent.

[Tigerroll002]

Yes,

Please send next PM.

(EDIT)
PP Sent

[MrMustardsMayhem]

Hello! If I could get help on making this UHD rip compatible that would be great. I'm on Mac but also have access to a pc

Drive Information
OS device name: /dev/rdisk7
Current profile: CD-ROM
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: A102
Serial number: [redacted]
Firmware date: 2121-06-28 13:41
Bus encryption flags: 1F

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

Disc Information
Data capacity: 0.32 Gb

[Coopervid]

Hello! If I could get help on making this UHD rip compatible that would be great. I'm on Mac but also have access to a pc

Drive Information
OS device name: /dev/rdisk7
Current profile: CD-ROM
Manufacturer: ASUS
Product: SBW-06D2X-U
Revision: A102
Serial number: [redacted]
Firmware date: 2121-06-28 13:41
Bus encryption flags: 1F

LibreDrive Information
Status: Possible, not yet enabled
Drive platform: MT1959

Disc Information
Data capacity: 0.32 Gb

Your drive is a LG. So follow the guide.

viewtopic.php?f=16&t=19634

[MrMustardsMayhem]

I'm following the guide but my Mac won't open any of the files I downloaded

[zittrig]

The SDFTool is for Windows (10 and higher) only.
