Flashing LG WH16NS40 back to original 1.03 firmware

Post by jt5298 »

I want to flash my LG WH16NS40 back to the original 1.03 firmware. I flashed it to 1.02MK using the instructions here. It is now LG WH16NS60 1.00 firmware only because I thought the grinding was related to the 1.02MK firmware. Anyway, just want to know if this is possible without messing up my drive. If it will work, is there a download of the 1.03 firmware I can use to do this? If I could please just get a yes or no answer, this will work or not, and not ask why I am wanting to do this.

Thanks.
Billycar11
Posts: 4396
Joined: Sun Aug 24, 2014 5:49 am

Re: Flashing LG WH16NS40 back to original 1.03 firmware

Post by Billycar11 »

jt5298 wrote:
Thu Apr 06, 2023 5:49 pm
I want to flash my LG WH16NS40 back to the original 1.03 firmware. I flashed it to 1.02MK using the instructions here. It is now LG WH16NS60 1.00 firmware only because I thought the grinding was related to the 1.02MK firmware. Anyway, just want to know if this is possible without messing up my drive. If it will work, is there a download of the 1.03 firmware I can use to do this? If I could please just get a yes or no answer, this will work or not, and not ask why I am wanting to do this.

Thanks.
Yes it's possible
Buy a UHD drive from the guide and how to video maker: https://www.makemkv.com/forum/viewtopic ... 20&t=17831
UHD Drives Guide: https://www.makemkv.com/forum/viewtopic ... 16&t=19634
Auto flash kit $25 Email me for one Billycar5924@gmail.com
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Flashing LG WH16NS40 back to original 1.03 firmware

Post by jt5298 »

Yes it's possible


Thank you. Is there a download on this site of the 1.03 firmware I can use? If not, will the 1.03 firmware from the LG website work? or is it encrypted.

Thanks
Billycar11
Posts: 4396
Joined: Sun Aug 24, 2014 5:49 am

Re: Flashing LG WH16NS40 back to original 1.03 firmware

Post by Billycar11 »

jt5298 wrote:
Thu Apr 06, 2023 7:36 pm
Yes it's possible


Thank you. Is there a download on this site of the 1.03 firmware I can use? If not, will the 1.03 firmware from the LG website work? or is it encrypted.

Thanks
The 1.03 from LGs site will work
Buy a UHD drive from the guide and how to video maker: https://www.makemkv.com/forum/viewtopic ... 20&t=17831
UHD Drives Guide: https://www.makemkv.com/forum/viewtopic ... 16&t=19634
Auto flash kit $25 Email me for one Billycar5924@gmail.com
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Flashing LG WH16NS40 back to original 1.03 firmware

Post by jt5298 »

Billycar11 wrote:
Thu Apr 06, 2023 7:46 pm
jt5298 wrote:
Thu Apr 06, 2023 7:36 pm
Yes it's possible


Thank you. Is there a download on this site of the 1.03 firmware I can use? If not, will the 1.03 firmware from the LG website work? or is it encrypted.

Thanks
The 1.03 from LGs site will work
Great, thanks!
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by jt5298 »

Okay, probably a dumb question, but if I use the firmware from LG's website, I am going to follow their directions to flash my drive back to 1.03 correct?
MartyMcNuts
Posts: 2951
Joined: Wed Nov 22, 2017 11:45 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by MartyMcNuts »

jt5298 wrote:
Thu Apr 06, 2023 9:31 pm
Okay, probably a dumb question, but if I use the firmware from LG's website, I am going to follow their directions to flash my drive back to 1.03 correct?
You would need to flash the drive to WH16NS40 1.02-MK first as the official LG flasher for the WH16NS40 won't find your drive until it is on WH16NS40 firmware. Also, just so you are aware, if you flash it back to stock WH16NS40 1.03 firmware, it will no longer be able to read UHD discs.
Cheers :D
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW): https://uhdenableddrives.com
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by jt5298 »

MartyMcNuts wrote:
Thu Apr 06, 2023 11:12 pm
jt5298 wrote:
Thu Apr 06, 2023 9:31 pm
Okay, probably a dumb question, but if I use the firmware from LG's website, I am going to follow their directions to flash my drive back to 1.03 correct?
You would need to flash the drive to WH16NS40 1.02-MK first as the official LG flasher for the WH16NS40 won't find your drive until it is on WH16NS40 firmware. Also, just so you are aware, if you flash it back to stock WH16NS40 1.03 firmware, it will no longer be able to read UHD discs.
Okay, just so I am clear, it is possible to flash from WH16NS60 1.00 which is what I have now, back to WH16NS40 1.02MK using the SDFtool Flasher. Then use LG 1.03 firmware from their site and directions to flash back to 1.03. Yes, I am aware that it will no longer read UHD discs.

Thanks.
MartyMcNuts
Posts: 2951
Joined: Wed Nov 22, 2017 11:45 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by MartyMcNuts »

jt5298 wrote:
Thu Apr 06, 2023 11:40 pm
MartyMcNuts wrote:
Thu Apr 06, 2023 11:12 pm
jt5298 wrote:
Thu Apr 06, 2023 9:31 pm
Okay, probably a dumb question, but if I use the firmware from LG's website, I am going to follow their directions to flash my drive back to 1.03 correct?
You would need to flash the drive to WH16NS40 1.02-MK first as the official LG flasher for the WH16NS40 won't find your drive until it is on WH16NS40 firmware. Also, just so you are aware, if you flash it back to stock WH16NS40 1.03 firmware, it will no longer be able to read UHD discs.
Okay, just so I am clear, it is possible to flash from WH16NS60 1.00 which is what I have now, back to WH16NS40 1.02MK using the SDFtool Flasher. Then use LG 1.03 firmware from their site and directions to flash back to 1.03. Yes, I am aware that it will no longer read UHD discs.

Thanks.
Correct. I'm not sure if there is a WH16NS40 1.02-MK. I think it might be DE_WH16NS40_1.02. Anyway, you must flash to WH16NS40 1.02 or 1.01 firmware before you are able to use the original LG flasher to upgrade to stock 1.03.
Last edited by MartyMcNuts on Fri Apr 07, 2023 12:06 am, edited 1 time in total.
Cheers :D
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW): https://uhdenableddrives.com
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by jt5298 »

MartyMcNuts wrote:
Fri Apr 07, 2023 12:03 am
jt5298 wrote:
Thu Apr 06, 2023 11:40 pm
MartyMcNuts wrote:
Thu Apr 06, 2023 11:12 pm


You would need to flash the drive to WH16NS40 1.02-MK first as the official LG flasher for the WH16NS40 won't find your drive until it is on WH16NS40 firmware. Also, just so you are aware, if you flash it back to stock WH16NS40 1.03 firmware, it will no longer be able to read UHD discs.
Okay, just so I am clear, it is possible to flash from WH16NS60 1.00 which is what I have now, back to WH16NS40 1.02MK using the SDFtool Flasher. Then use LG 1.03 firmware from their site and directions to flash back to 1.03. Yes, I am aware that it will no longer read UHD discs.

Thanks.
Correct.
Thank you.
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by jt5298 »

jt5298 wrote:
Fri Apr 07, 2023 12:04 am
MartyMcNuts wrote:
Fri Apr 07, 2023 12:03 am
jt5298 wrote:
Thu Apr 06, 2023 11:40 pm


Okay, just so I am clear, it is possible to flash from WH16NS60 1.00 which is what I have now, back to WH16NS40 1.02MK using the SDFtool Flasher. Then use LG 1.03 firmware from their site and directions to flash back to 1.03. Yes, I am aware that it will no longer read UHD discs.

Thanks.
Correct.
Thank you.
I flashed the drive back to 1.02MK using the SDFtool Flasher. I downloaded the 1.03 exe file from LG site. When I extract the zip file. It only opens in H-L Data Storage program, which I believe is the old flasher tool. I can't seem to open the file in another application. I can't find the H-L program on my computer to delete it. LG website says the exe file will open and I need to click the red update button. I can't get to this step because it keeps opening in this other program. It shows the file location but I can't find it there to delete it.
d00zah
Posts: 1595
Joined: Mon Jun 06, 2016 8:23 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by d00zah »

The 1.03 exe file from LG IS the 'H-L program'. Vendor provided FW updates are an integrated package.

sdftool64.exe/SDFtool Flasher/discrete binaries should only be necessary when applying something other than a vendor provided FW.
jt5298
Posts: 34
Joined: Thu Mar 09, 2023 4:17 pm

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by jt5298 »

d00zah wrote:
Fri Apr 07, 2023 4:17 pm
The 1.03 exe file from LG IS the 'H-L program'. Vendor provided FW updates are an integrated package.

sdftool64.exe/SDFtool Flasher/discrete binaries should only be necessary when applying something other than a vendor provided FW.
okay, thanks.
ILove3D
Posts: 1
Joined: Fri Apr 07, 2023 7:24 pm

Help with LG BP50N40

Post by ILove3D »

Hi, I have an LG BP50NB40 SVC NB40, it has MT1959 and all the requirements. I flashed it to NB50 and then to BP60 but now the tray doesn't open. If I open it with a paper clip it doesn't read discs anymore, it doesn't even spin. MakeMKV recognizes the drive but not the discs. I restored the backup firmware and it's the same. I even used the official LG firmware installer and it's now on 1.03, MakeMKV says it has the original firmware again, but it still doesn't work. I just want it to work again, even if it doesn't support 4k Blurays, I just don't want to buy another one for my 3D blurays. Thanks in advance.

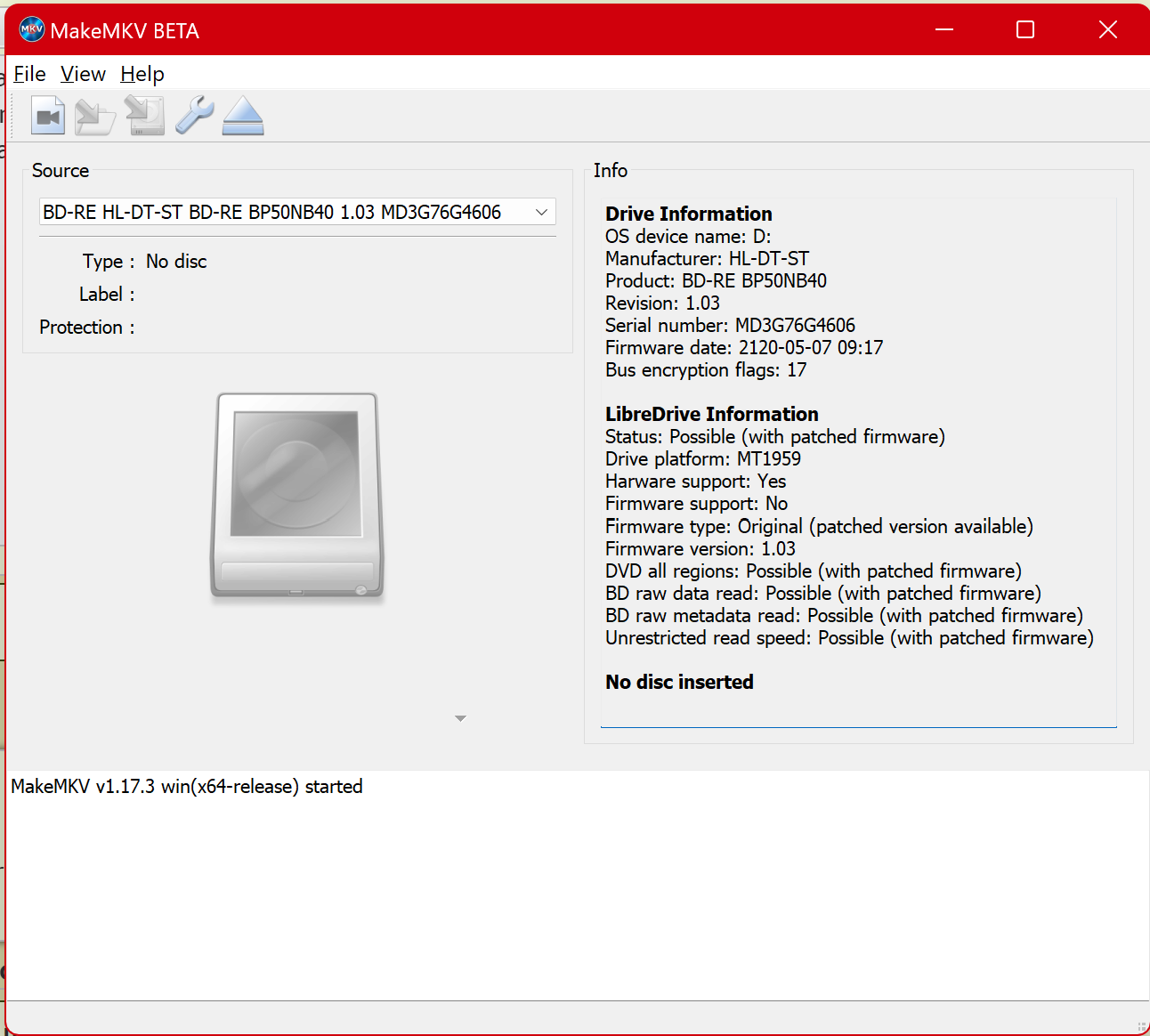

Captura de pantalla 2023-04-07 133125.png
Captura de pantalla 2023-04-07 133125.png (105.9 KiB) Viewed 14734 times
Billycar11
Posts: 4396
Joined: Sun Aug 24, 2014 5:49 am

Re: Ultimate UHD Drives Flashing Guide Updated 2023

Post by Billycar11 »

NB 50+ on that one NB 40 it's bricked .
You can recover though with Marty's sdf gui and the nb40 fw
