Dolby Vision now possible through MP4 Mux.

[Gatorman]

Hi! Crop RPU which mode? Thank you in advance.

You can crop them manually with the dovi_tool itself (CMD). However there is an option to crop RPU's during the inject workflows (Mode.I).

[ArArdin]

So you don t advice DUNE HD REAL VISION 4K for P7 MKV dolby vision to buy ?

I can't help keeping to remind that not every P7 carries FEL. It can have MEL instead, which is equivalent to P8.1.

That having said, I couldn't advice on whether to buy or not. In my viewing environment, the additional impact varies per title. During regular playback sometimes it's even hard to notice. Where you could only tell by scrutaneous A-B comparison on still images. To my eyes screen calibration brought more joy than additional FEL enhancement. It comes with a pricetag though.
Among my players is a RTD1619 based Zidoo Z9X. When viewing a FEL movie, I have no urge to switch to UHDBD player because I'd miss out on something. There is a lot to be enjoyed on DV even if FEL is ignored. IMO, the main awe of Dolby Vision (and HDR10+ for that matter) lies in the applyance of dynamical metadata.

Everybody should decide for himself. Go compare players that do and don't support FEL processing. Where you also may want to compare tv-led to lldv. Imagine a lower-end tv displaying a better picture when tonemapping is performed by a higher-end player. And vice-versa.

...as long as you can watch 5 that's good enough.

I'm definitely keeping an eye on P5. When these streams became available I did have problems with the "quality".
Which overall has significantly improved though, and seems to keep improving.

[Manixx2020beyound]

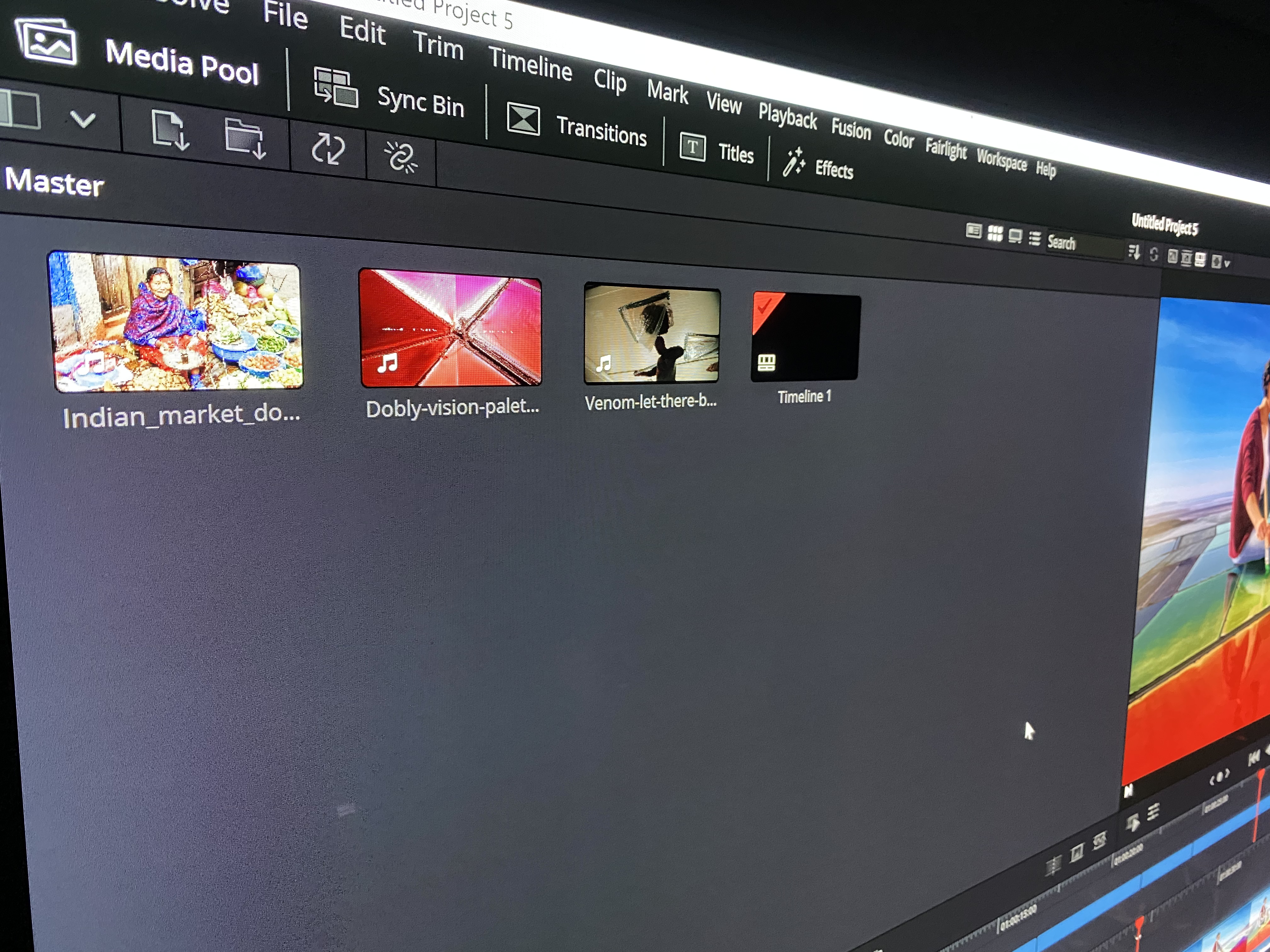

Was able to decode all the p5’s I tested,doblyvision demos as well as including full p5 real web dl rips!

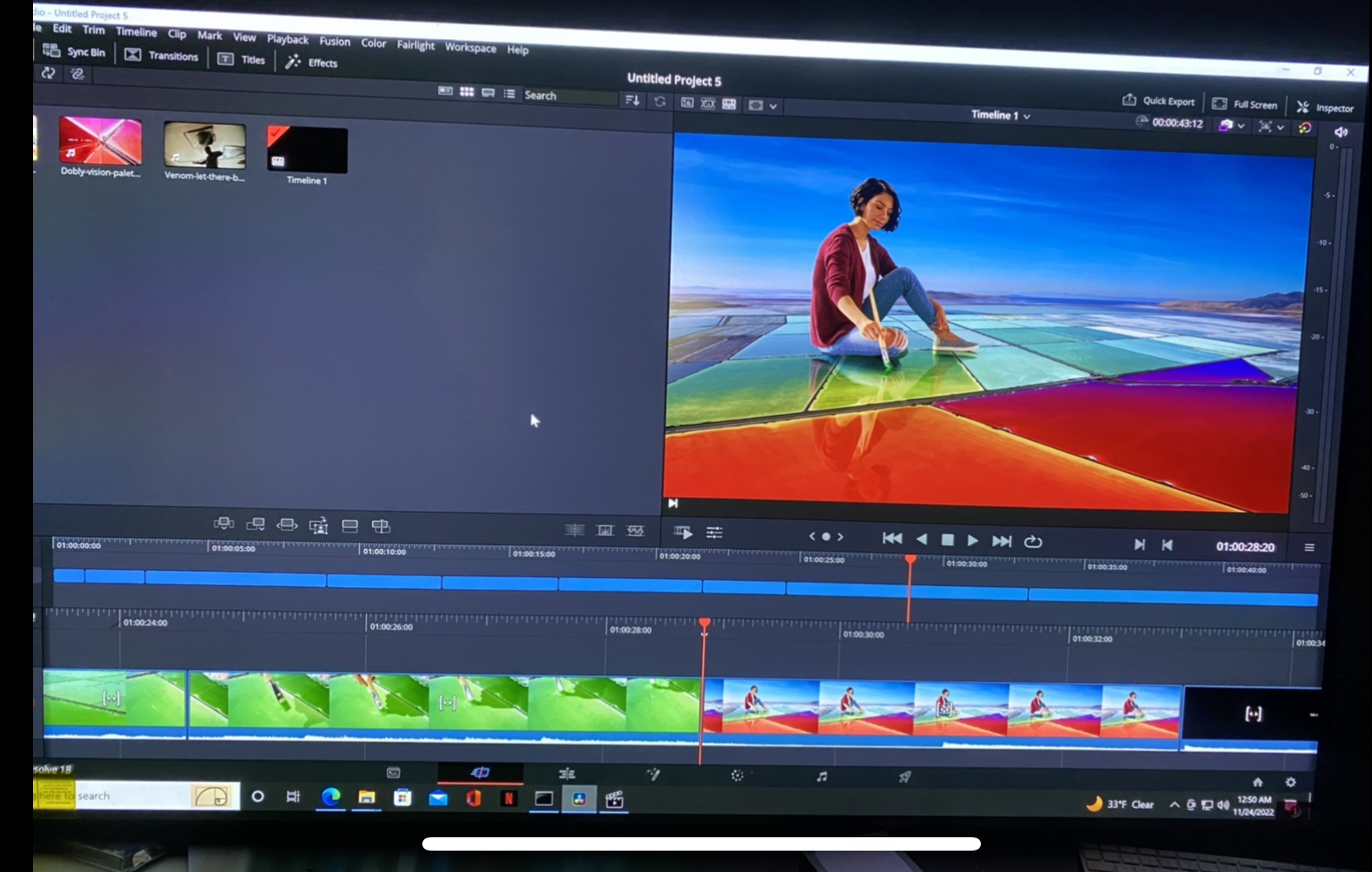

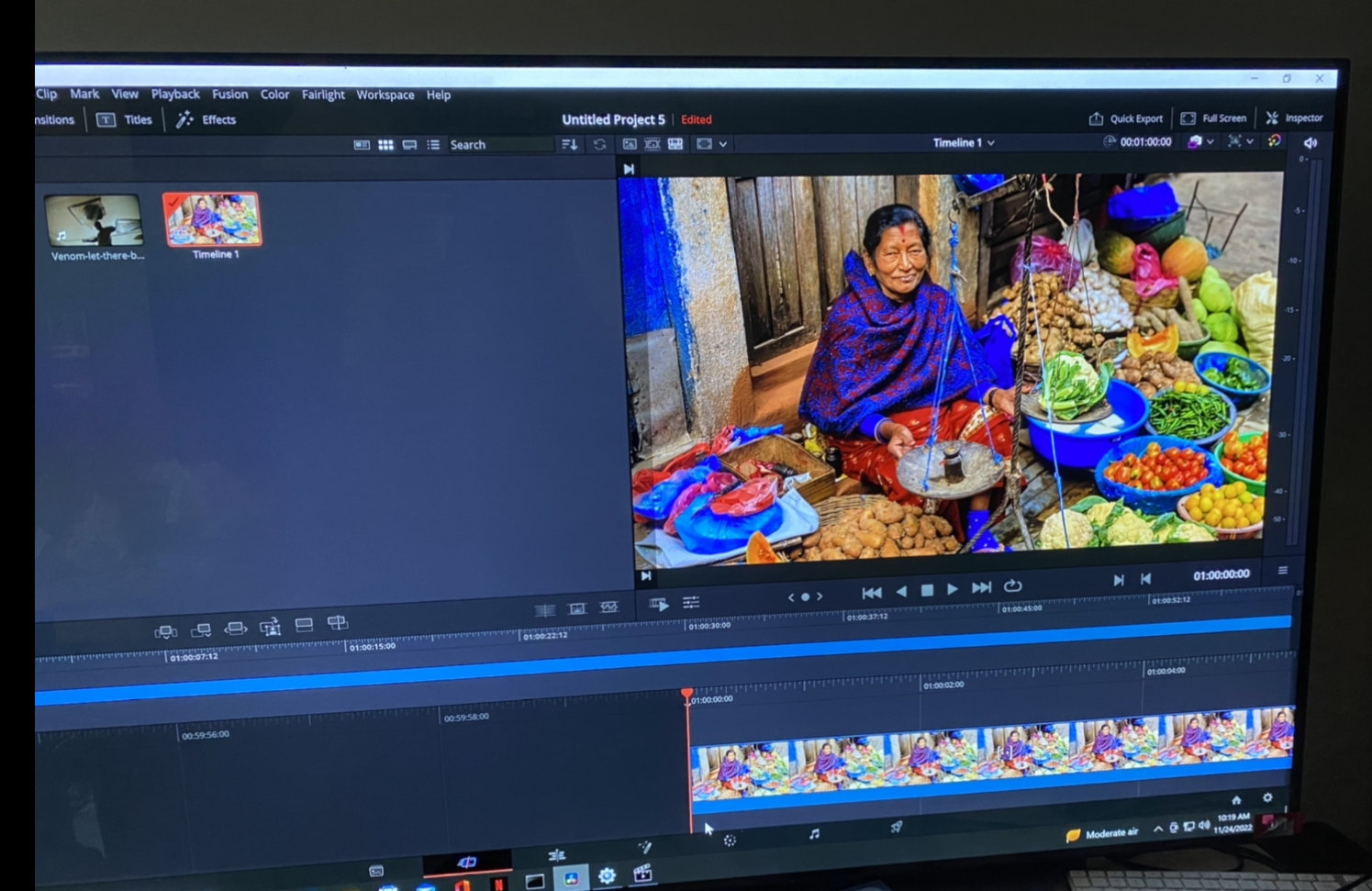

Both clips on the time line are p5 only converted to p8
Mac users are having more fun smh.
Bc the option is free on the mac.

[Gatorman]

Was able to decode all the p5’s I tested,doblyvision demos as well as including full p5 real web dl rips!
Both clips on the time line are p5 only converted to p8
Mac users are having more fun smh.
Bc the option is free on the mac.

What steps did you take to decode P5? Should it happen automatically?

[Manixx2020beyound]

Was able to decode all the p5’s I tested,doblyvision demos as well as including full p5 real web dl rips!
Both clips on the time line are p5 only converted to p8
Mac users are having more fun smh.
Bc the option is free on the mac.

What steps did you take to decode P5? Should it happen automatically?

Are u using a Mac ?
If so did u try Glass blowing??
It should happen automatically but it does not for 99% of the demos & p5 web dl I tested at 1st.
But they do now.
I did not update my mac yet just been testing on windows but I am curious about the mac as well.

[Gatorman]

Are u using a Mac ?
If so did u try Glass blowing??
It should happen automatically but it does not for 99% of the demos & p5 web dl I tested at 1st.
But they do now.
I did not update my mac yet just been testing on windows but I am curious about the mac as well.

I'm running Windows.

[Manixx2020beyound]


Are u using a Mac ?
If so did u try Glass blowing??
It should happen automatically but it does not for 99% of the demos & p5 web dl I tested at 1st.
But they do now.
I did not update my mac yet just been testing on windows but I am curious about the mac as well.

I'm running Windows.

Do U have the p5 encoding options are u using one of those new laptops?
encoding options & decoding options are both enabled at the same time.

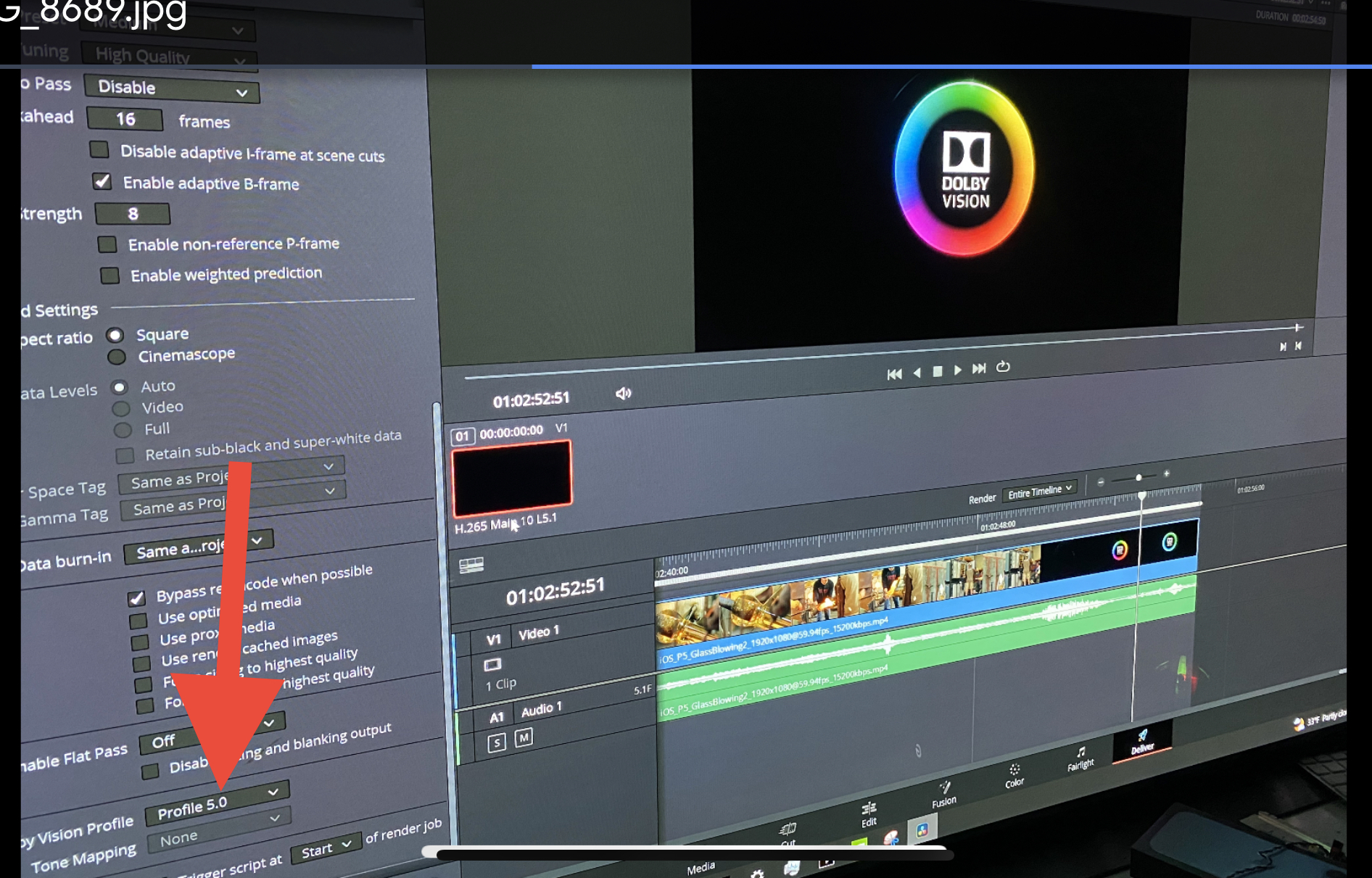

If u have like the picture then it’s enabled

[Gatorman]

Do U have the p5 encoding options are u using one of those new laptops?
encoding options & decoding options are both enabled at the same time.
If u have like the picture then it’s enabled

Running ZEN+ with Nvidia desktop. I do not have those settings. I guess a Dolby Vision License is needed?

[Manixx2020beyound]

Do U have the p5 encoding options are u using one of those new laptops?
encoding options & decoding options are both enabled at the same time.
If u have like the picture then it’s enabled

Running ZEN+ with Nvidia desktop. I do not have those settings. I guess a Dolby vision license is needed?

For windows yes. Or a hack I found which allows resolve to think it’s connected to a doblyvision monitor, that was discussed here a while back.

[Gatorman]

For windows yes. Or a hack I found which allows resolve to think it’s connected to a doblyvision monitor, that was discussed here a while back.

Thanks. I'll track down that post.

[MastaG]

I'm trying to use RESET's DV scripts to convert my Westworld discs to mp4 using the old mp4muxer method using .ts input (7-2-4).
For this I've used TSMuxerGUI first to extract the first episode (00089.mpls) to ts file.
The audio track seems to be TrueHD and I didn't downconvert it to AC3.
When opening the ts file with the script, it will demux and use eac3to extract the AC3 audio from the trueHD track.

Here's the output:

Code: Select all

                        _____    __      ___       _____           _       _
                       |  __ \   \ \    / (_)     / ____|         (_)     | |
                       | |  | | __\ \  / / _     | (___   ___ _ __ _ _ __ | |_ ___
                       | |  | |/ _ \ \/ / | |     \___ \ / __| '__| | '_ \| __/ __|
                       | |__| | (_) \  /  | |     ____) | (__| |  | | |_) | |_\__ \
                       |_____/ \___/ \/   |_|    |_____/ \___|_|  |_| .__/ \__|___/
                       -@RESET_9999---------------------------------|__|-----------



 Choose a mode...

1) MODE.I=  DoVi Convert/Edit/Sync/Inject 2 inputs (P8 Hybrid maker)
2) MODE.F=  DoVi Fix/Extract/Info/Edit/Verify 1 input (does not convert the profile)
3) MODE.H=  DoVi Maker (from HDR10 madVR or HDR10plus)
4) MODE.P=  Profile 7 Input (MKV/BDMV)
5) MODE.B=  Dovi Batch tsMuxer: MKV/MP4 to TS
6) MODE.M=  MIXED: Remover/Measurer/Plotter/Audio/Player and more...
7) MODE.M4= MP4 Workflows
8) Exit

Choice? [1,2,3,4,5,6,7,8]?7
                                           *****************
                                           * CHOOSE A MODE *
                                           *****************

1) MODE.1= Single-Track (mp4box, Apple, Sony, Newer LG)
2) MODE.2= Old mp4muxer workflows (older LG TVs)
3) MODE.3= Dual-Track (p7)
4) MODE.4= Demuxer (p5, p8, p7)
5) MODE.5= Resolve HDR10/SDR MP4 (temp/testing)
6) MODE.6= back to main menu

Choice? [1,2,3,4,5,6]?2
                                         *********************
                                         * CHOOSE A WORKFLOW *
                                         *********************

1) Workflow.1= MANUAL: Any P8/P5 HEVC/H265 + Any Audio(lossless audio included) + SRT subtitle
2) Workflow.2= Bluray Disc to Profile 8 + AC3
3) Workflow.3= Bluray Disc to Profile 8 + EC3
4) Workflow.4= MKV/TS/M2TS Profile 7/8 to Profile 8 + AC3
5) Workflow.5= MKV/TS/M2TS Profile 7/8 to Profile 8 + EC3
6) Workflow.6= HDR10 or HDR10plus to DoVi Profile 8 + AC3
7) Workflow.7= HDR10 or HDR10plus to DoVi Profile 8 + EC3
8) Workflow.8= BATCH MKV/TS/M2TS Profile 7/8 to Profile 8 + EC3

Choice? [1,2,3,4,5,6,7,8]?4
--------------------------------------------------------------------
-- This workflow convert P7/P8 MKV TS M2TS to P8 MP4
-- Convert or use existing AC3 audio
-- Dont use this workflow for AppleTV P8 hybrid
-------------------------------------------------------------------
Drag and drop your MKV/TS file and press enter...D:\ww_s01e01.ts
tsMuxeR version git-a10bea3. github.com/justdan96/tsMuxer
HEVC muxing fps is not set. Get fps from stream. Value: 23.976
HEVC muxing fps is not set. Get fps from stream. Value: 23.976
0.0% complete
1.4% complete
2.9% complete
4.2% complete
5.5% complete
6.8% complete
8.2% complete
9.5% complete
10.8% complete
12.2% complete
13.5% complete
14.9% complete
16.3% complete
17.7% complete
19.1% complete
20.5% complete
21.9% complete
23.2% complete
24.6% complete
25.9% complete
27.3% complete
28.6% complete
30.0% complete
31.4% complete
32.7% complete
34.0% complete
35.4% complete
36.7% complete
38.0% complete
39.3% complete
40.6% complete
41.9% complete
43.3% complete
44.6% complete
46.0% complete
47.3% complete
48.6% complete
49.9% complete
51.3% complete
52.7% complete
54.1% complete
55.4% complete
56.7% complete
58.1% complete
59.4% complete
60.7% complete
62.0% complete
63.4% complete
64.8% complete
66.1% complete
67.4% complete
68.8% complete
70.1% complete
71.5% complete
72.9% complete
74.2% complete
75.5% complete
76.9% complete
78.3% complete
79.7% complete
81.0% complete
82.3% complete
83.7% complete
85.1% complete
86.4% complete
87.8% complete
89.1% complete
90.5% complete
91.8% complete
93.2% complete
94.5% complete
95.9% complete
97.3% complete
98.7% complete
Processed 97945 video frames
Processed 97945 video frames
100.0% complete
Flushing write buffer
Demux complete.
Demuxing time: 18 sec
TS, 2 video tracks, 1 audio track, 1:08:05, 11.988p
1: h265/HEVC, 2160p24 /1.001 (16:9), 10 bits, -11650ms
2: h265/HEVC, 1080p24 /1.001 (16:9), 10 bits - Dolby Vision Enhancement Layer, -11650ms
3: TrueHD/AC3 (Atmos), 7.1 channels, 48kHz, -11650ms
   (embedded: AC3 EX, 5.1 channels, 448kbps, 48kHz, dialnorm: -27dB)
a03 Extracting audio track number 3...
a03 Extracting AC3 stream...
a03 Removing AC3 dialog normalization...
a03 Applying (E-)AC3 delay...
a03 A remaining delay of -2ms could not be fixed.
a03 Creating file "D:\Apps\DoVi_Scripts\TEMP_folder\audio.ac3"...
Video track 1 contains 97926 frames.
Video track 2 contains 97926 frames.
eac3to processing took 58 seconds.
Done.
mkvmerge v71.1.0 ('Fortitude') 64-bit
'D:\Apps\DoVi_Scripts\TEMP_folder\EL.hevc': Using the demultiplexer for the format 'HEVC/H.265'.
'D:\Apps\DoVi_Scripts\TEMP_folder\EL.hevc' track 0: Using the output module for the format 'HEVC/H.265 (unframed)'.
The file 'D:\Apps\DoVi_Scripts\TEMP_folder\EL.mkv' has been opened for writing.
'D:\Apps\DoVi_Scripts\TEMP_folder\EL.hevc' track 0: Extracted the aspect ratio information from the video bitstream and set the display dimensions to 1920/1080.
Progress: 1%
The cue entries (the index) are being written...
Multiplexing took 0 seconds.
Extracting track 0 with the CodecID 'V_MPEGH/ISO/HEVC' to the file 'D:\Apps\DoVi_Scripts\TEMP_folder\el.chunk.hevc'. Container format: HEVC/H.265 elementary stream
Progress: 100%
Reordering metadata... Done.
Parsing RPU file...
Exporting metadata...
Done.
converting and injecting RPU...
Rewriting file with interleaved EL NALUs..
muxing into a DV MP4 . Be patient, it can take a while. 40min+ on slow HDD!
        1 file(s) moved.
the script has completed...
Press any key to continue . . .

I didn't test it on my LG TV yet, but the resulting mp4 seems to have the audio out of sync when playing it with VLC.

Any ideas?

[saba30]

bugfix for DoVi_Scripts.bat
1.6.8
17291: if exist "%TEMP%%filename%.track_%AID%_%langDG%.ac3" set audio="%TEMP%%filename%.track_%AID%_%lang%.ac3" =>
17291: if exist "%TEMP%%filename%.track_%AID%_%langDG%.ac3" set audio="%TEMP%%filename%.track_%AID%_%langDG%.ac3"

18044: if exist "%TEMP%%filename%.track_%AID%_%langDG%.ac3" set audio="%TEMP%%filename%.track_%AID%_%lang%.ac3" =>
18044: if exist "%TEMP%%filename%.track_%AID%_%langDG%.ac3" set audio="%TEMP%%filename%.track_%AID%_%langDG%.ac3"

17013: if not "%ac3%"=="y" "%eac3to_path%" "%filepath%%filename%%fileext%" %EID%:"%TEMP%audio.ac3" & set audio="%TEMP%audio.ac3" =>
17013: if not "%ac3%"=="y" "%eac3to_path%" "%filepath%%filename%%fileext%" %EID% "%TEMP%audio.ac3" & set audio="%TEMP%audio.ac3"

18047: if not "%ac3%"=="y" "%eac3to_path%" "%filepath%%filename%%fileext%" %EID%:"%TEMP%audio.ac3" & set audio="%TEMP%audio.ac3" =>
18047: if not "%ac3%"=="y" "%eac3to_path%" "%filepath%%filename%%fileext%" %EID% "%TEMP%audio.ac3" & set audio="%TEMP%audio.ac3"

[ArArdin]

Thanks @saba30.

Is this already taken care of in batch version 1.6.8.1 BETA ? If not, can you tell the line numbers to be edited?

[Gatorman]

Thanks @saba30.

Is this already taken care of in batch version 1.6.8.1 BETA ? If not, can you tell the line numbers to be edited?

If you're trying to communicate with @Reset_9999, the best way is through PM.

[ArArdin]

I assumed saba30 was another person that found a bug. Didn't have the intention to disturb RESET_9999 since he's having a break.

Thanks, Gatorman.
