Dolby Vision now possible through MP4 Mux.
Re: Dolby Vision now possible through MP4 Mux.
Hi, I think about getting a Sony x700 and just wanted to make sure if I understand correctly, that the x700 is able to play DV P8 dual layer m2ts/ts fine? Is this independent from MEL and FEL? So no issues with FEL?
Thank you!
Thank you!
-
- Posts: 2013
- Joined: Mon Aug 05, 2019 7:12 pm
Re: Dolby Vision now possible through MP4 Mux.
the x700 can play all the DV profiles. So, yes it supports MEL / FEL-DV+ lossless audio TS/M2TS rip. I watched tons of DV movies and I never had a playback issue.
Just remux your UHD-BD with tsMuxer and you're good to go.
Sorry for my English.
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
-
- Posts: 23
- Joined: Thu Jun 18, 2020 6:52 am
Re: Dolby Vision now possible through MP4 Mux.
What's interesting about this is the Chromecast with Google TV is running on a S905D3G chipset, which is very similar to the S905X2/S905X3 etc. that many Android TV boxes out there use. If this chipset can properly decode FEL in STDL mkv, it perhaps means that any of those boxes (hopefully one with lossless audio passthrough) can be similarly capable with a firmware update - perhaps even CoreELEC, now that we know it's possible on these Amlogic chipsets?yossSP wrote: ↑Tue Feb 16, 2021 8:14 amHi all, I have made the test with the new Chromecast with Google TV (CCWGTV)shawnc22 wrote: ↑Tue Feb 16, 2021 1:43 amI'm skeptical. Even if it's capable of playing FEL, I suspect that it's just ignoring the EL like what the Shield is doing. I highly doubt that the Chromecast has the dual decoders needed to properly playback FEL.daicon wrote: ↑Mon Feb 15, 2021 10:45 pm
Here say that work DV FEL:
https://www.avpasion.com/foro/t/nuevo-c ... -mel.3588/
Any try?
is true?
Test platform:The results:
- TV OLED Panasonic TX-65HZ1000
- Emby/Plex beta MediaServer on Windows 10 Pro 64 bits
- Chromecast with Google TV (2020)
- test DT DL FEL: playback as HDR10 (CCWGTV can't play dual track DV)
- test SL p8 RPU: playback as HDR10 (without noise)
- test ST DL FEL: playback as DV with noise during 5 seconds
Re: Dolby Vision now possible through MP4 Mux.
Can we playback single layer DV (profile 5) mkv (!) with Firestick4k? If so, how? Thanks
Re: Dolby Vision now possible through MP4 Mux.
shawnc22 wrote: ↑Tue Feb 16, 2021 6:05 pmWow, that is definitely a pleasant surprise. Are you saying that with the latest firmware update, you can still only play the first 5 seconds with Plex beta? Is it maybe trying to transcode because you selected one of the lossless audio tracks? Not supporting lossless audio is still a bit of a deal breaker for me, but it definitely shows promise for future devices.yossSP wrote: ↑Tue Feb 16, 2021 8:14 amHi all, I have made the test with the new Chromecast with Google TV (CCWGTV)
Test platform:The results:
- TV OLED Panasonic TX-65HZ1000
- Emby/Plex beta MediaServer on Windows 10 Pro 64 bits
- Chromecast with Google TV (2020)
test ST DL FEL
- test DT DL FEL: playback as HDR10 (CCWGTV can't play dual track DV)
- test SL p8 RPU: playback as HDR10 (without noise)
- test ST DL FEL: playback as DV with noise during 5 seconds
https://ibb.co/p4mQSgr
test SL p8 RPU
https://ibb.co/rbCXb8V
Latest Emby beta can't play the file as DV it plays as HDR10, but I can do it with latest Plex beta, but only during 5 seconds, rendering the noise of the FEL layer as the picture shows .
After this 5 seconds Plex stops the playback and shows an error saying something like there isn't enought power to decode the file. I receive this error when Plex can't play a file without transcoding because I disable transcoding in Plex, but it never has ben shown in the middle of a playback, it always show before rendering.
Well, after the last firmware update on february this little device never ceases to amaze me.
Also I can play with latest Plex beta FEL files of 90Mb/s without issues.
So, after these results, can we say that this device fully supports FEL media?
Yes, Plex plays 5 seconds then stops with an error. I think ist' because of this particular file, I have played several DV files of every profile in Plex and it plays fine from begin to end.
Regarding audio, the Chromecast with Google TV supports:
- Dolby Digital
- Dolby Digital Plus
- Dolby digital Plus + Dolby Atmos
- DTS
- Passthrough of DTS Core 5.1 inside DTS-HD
- AAC
- PCM
[*]Dolby TrueHD
[*]Dolby TrueHD + Dolby Atmos
[*]DTS-X
At the moment, in my country there is almost no Atmos/DTS-X film in my language, and I'm not capable of enjoy a film in english, so I will live without positional audio along time. Also my AVR doesn't support Atmos os DTS-X, but it's capable with Dolby TrueHD and DTS-HD.
So my solution is to convert the best quality audio in my language if it's not supported. I do it with ffmpeg converting to EAC3 5.1 1536kbps, and adding it as default audio track. Practically there is no film with more than 5.1 channels in my language and my ear can't distinguish the new track from the original.
But it's my particular case, each one will be different.
Re: Dolby Vision now possible through MP4 Mux.
Well, not exactly, it depends of the Dolby license the manufacturer bought. Most of these TV Boxes not even buy a right license for streaming platforms like Netflix, whats is the reason they can't playback at 4K.dysprosium wrote: ↑Wed Feb 17, 2021 6:35 amWhat's interesting about this is the Chromecast with Google TV is running on a S905D3G chipset, which is very similar to the S905X2/S905X3 etc. that many Android TV boxes out there use. If this chipset can properly decode FEL in STDL mkv, it perhaps means that any of those boxes (hopefully one with lossless audio passthrough) can be similarly capable with a firmware update - perhaps even CoreELEC, now that we know it's possible on these Amlogic chipsets?yossSP wrote: ↑Tue Feb 16, 2021 8:14 amHi all, I have made the test with the new Chromecast with Google TV (CCWGTV)
Test platform:The results:
- TV OLED Panasonic TX-65HZ1000
- Emby/Plex beta MediaServer on Windows 10 Pro 64 bits
- Chromecast with Google TV (2020)
- test DT DL FEL: playback as HDR10 (CCWGTV can't play dual track DV)
- test SL p8 RPU: playback as HDR10 (without noise)
- test ST DL FEL: playback as DV with noise during 5 seconds
But I agree that this discovery give us a new world of possiblities in the near future, and above all, place us before the real possibilities of hardware capabilities of DV playback, till now a very dark ground.
Re: Dolby Vision now possible through MP4 Mux.
Hi @RESET_9999 , it's strange to me that playback of the test ST DL FEL.ts file stops after 5 seconds. Also it can only be played by Plex not Emby, wich more compatible with DV files in every profile.RESET_9999 wrote: ↑Tue Feb 16, 2021 9:22 pmprobably not the latest generation indeed... I wish @Manix(the guy with the Atomos shogun device) could confirm but he won't respond to me anymore, he's gone (probably personal issues) ...
¿Is it something to take into account? I supose it's caused because of peculiarities of this file, but can you provide a mkv file to test again. Tanks in advance.
Re: Dolby Vision now possible through MP4 Mux.
Yes you can, with Kodi (https://forum.kodi.tv/showthread.php?tid=360018) or Plex.
There is also a demo ExoPlayer app but it has to be launched from Kodi and requires a specific config for that.
-
- Posts: 2013
- Joined: Mon Aug 05, 2019 7:12 pm
Re: Dolby Vision now possible through MP4 Mux.
mkv DV ST FEL test file: https://drive.google.com/file/d/1KV7lqA ... sp=sharingyossSP wrote: ↑Wed Feb 17, 2021 10:47 am
Hi @RESET_9999 , it's strange to me that playback of the test ST DL FEL.ts file stops after 5 seconds. Also it can only be played by Plex not Emby, wich more compatible with DV files in every profile.
¿Is it something to take into account? I supose it's caused because of peculiarities of this file, but can you provide a mkv file to test again. Tanks in advance.
mp4 DV ST FEL test file: https://drive.google.com/file/d/1AYrRZo ... sp=sharing
If I remember correctly all the samples play fine on my x700, so I don't know why it stops after 5sec on the Chromecast. yes, it could be because it's not the right EL or because of the splitting. Also, I don't know if this can make a difference but I used the yusesope tool to create the sample and not makemkv.
Sorry for my English.
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
Re: Dolby Vision now possible through MP4 Mux.
Thanks @RESET_9999 , with both files now Emby playback in Dolby Vision with noise, so processing the FEL layer, and now after 5 seconds it stutters and change to HDR, but don't stops. In Plex both files run as the .ts one, it stops after 5 seconds. From what I see this has no more significance.RESET_9999 wrote: ↑Wed Feb 17, 2021 3:14 pmmkv DV ST FEL test file: https://drive.google.com/file/d/1KV7lqA ... sp=sharingyossSP wrote: ↑Wed Feb 17, 2021 10:47 am
Hi @RESET_9999 , it's strange to me that playback of the test ST DL FEL.ts file stops after 5 seconds. Also it can only be played by Plex not Emby, wich more compatible with DV files in every profile.
¿Is it something to take into account? I supose it's caused because of peculiarities of this file, but can you provide a mkv file to test again. Tanks in advance.
mp4 DV ST FEL test file: https://drive.google.com/file/d/1AYrRZo ... sp=sharing
If I remember correctly all the samples play fine on my x700, so I don't know why it stops after 5sec on the Chromecast. yes, it could be because it's not the right EL or because of the splitting. Also, I don't know if this can make a difference but I used the yusesope tool to create the sample and not makemkv.
From my eyes, the rendering quality in any HDR mode is fantastic but in Dolby Vision with MEL or FEL is superb.
And one last question, passing this test can we assure that this device is fully using the FEL layer as it should?
-
- Posts: 2013
- Joined: Mon Aug 05, 2019 7:12 pm
Re: Dolby Vision now possible through MP4 Mux.
yep, it confirms that your device is processing the FEL and not ignoring it like the Shield and the LG CX. If it's processing it properly is another question.
You can also test Total Recall at 43minutes. The HDR10 base layer is poorly encoded and only FEL DV can save it.
https://www.makemkv.com/forum/viewtopic ... 15#p104166
Sorry for my English.
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
-
- Posts: 127
- Joined: Thu Oct 08, 2020 5:19 pm
Re: Dolby Vision now possible through MP4 Mux.
5 seconds,RESET_9999 wrote: ↑Wed Feb 17, 2021 5:03 pmyep, it confirms that your device is processing the FEL and not ignoring it like the Shield and the LG CX. If it's processing it properly is another question.
You can also test Total Recall at 43minutes. The HDR10 base layer is poorly encoded and only FEL DV can save it.
https://www.makemkv.com/forum/viewtopic ... 15#p104166
Yes the test was the new version, colors were saturated before the update
Plus u need plex pass on this device to play hdr, plus it’s LLDV only
The device does drop frames sometimes not very noticeable
Re: Dolby Vision now possible through MP4 Mux.
Ok, thanks, it's a good begining at lastRESET_9999 wrote: ↑Wed Feb 17, 2021 5:03 pmyep, it confirms that your device is processing the FEL and not ignoring it like the Shield and the LG CX. If it's processing it properly is another question.
You can also test Total Recall at 43minutes. The HDR10 base layer is poorly encoded and only FEL DV can save it.
https://www.makemkv.com/forum/viewtopic ... 15#p104166
![Smile :)](./images/smilies/icon_smile.gif)
Re: Dolby Vision now possible through MP4 Mux.
Thanks for your answer @Manixx2020beyound.Manixx2020beyound wrote: ↑Wed Feb 17, 2021 5:43 pm5 seconds,RESET_9999 wrote: ↑Wed Feb 17, 2021 5:03 pmyep, it confirms that your device is processing the FEL and not ignoring it like the Shield and the LG CX. If it's processing it properly is another question.
You can also test Total Recall at 43minutes. The HDR10 base layer is poorly encoded and only FEL DV can save it.
https://www.makemkv.com/forum/viewtopic ... 15#p104166
Yes the test was the new version, colors were saturated before the update
Plus u need plex pass on this device to play hdr, plus it’s LLDV only

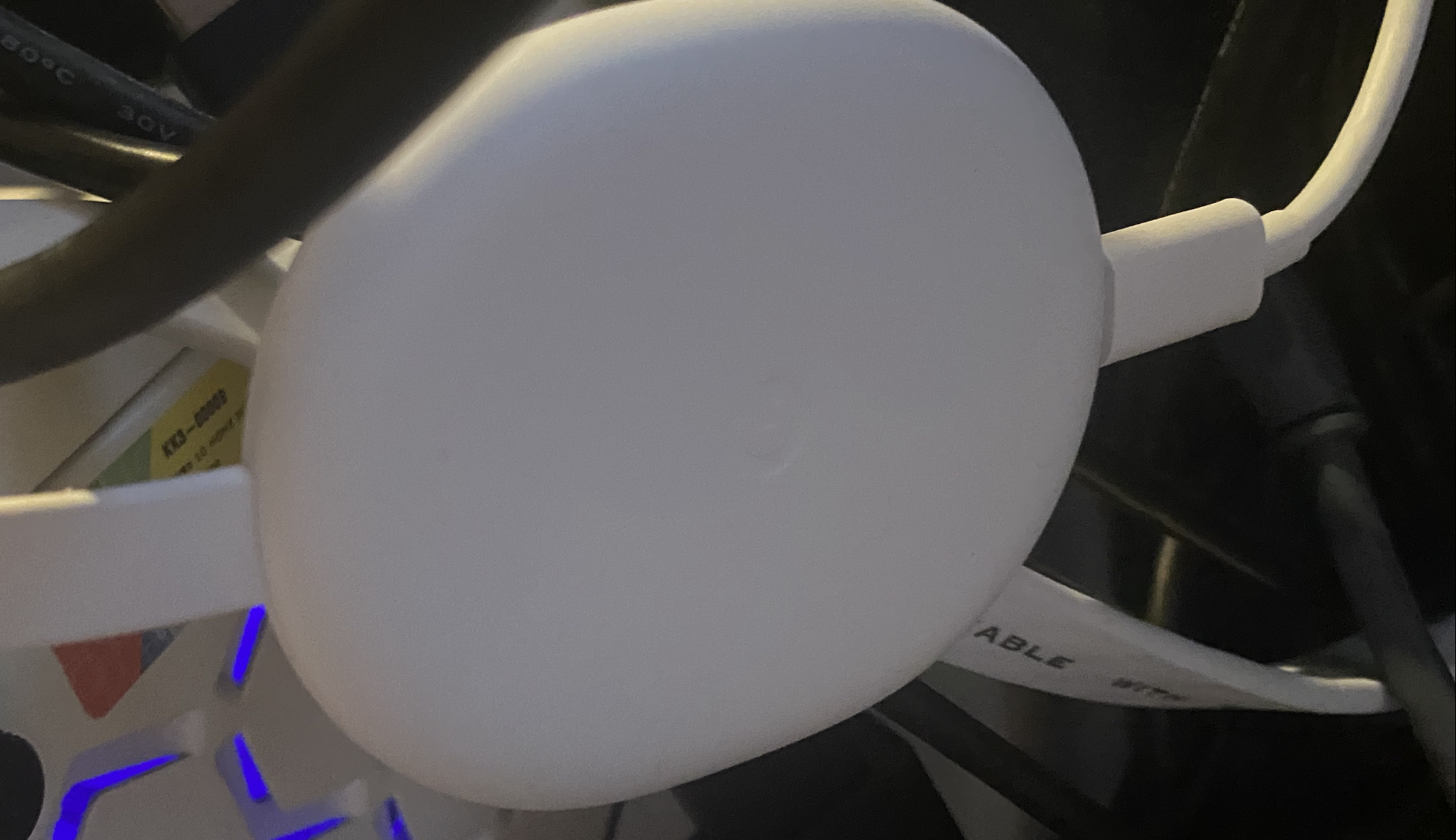

The device does drop frames sometimes not very noticeable 1BBBF90D-893E-4EE6-ADEF-9195E296DA1B.jpeg
I've got Plex beta without Plexpass and it renders every HDR, I believe that the Plexpass is only needed for HDR to SDR Tone Mapping.
Since the february update I can't see any frame drop in any playback, with high bandwith files.
How do you guess the new Chromecast with Google TV is LLDV only? is very difficult to obtain DV info about this device...
And, can you explain what are the consequences of this LLDV only processing?
The image quality I observe is really good, and I think I've got a good eye for this, but I can't compare with nothing.
Thanks in advance
![Smile :)](./images/smilies/icon_smile.gif)
Last edited by yossSP on Thu Feb 18, 2021 2:15 am, edited 1 time in total.
-
- Posts: 2013
- Joined: Mon Aug 05, 2019 7:12 pm
Re: Dolby Vision now possible through MP4 Mux.
He has the HDfury Vertex which can tell if it's lldv or tv-led DV.
https://www.youtube.com/watch?v=e_a77zJTrO4
https://www.youtube.com/watch?v=e_a77zJTrO4
Sorry for my English.
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
DoVi_Scripts / DoVi Playback Devices / Movies HDR-DV Plot / Screenshot Comparisons
