ASUS BW-16D1HT flash issues

Discussion of LibreDrive mode, compatible drives and firmwares
Post Reply
bas303
Posts: 2
Joined: Mon Mar 01, 2021 3:26 pm

ASUS BW-16D1HT flash issues

Post by bas303 » Mon Mar 01, 2021 3:34 pm

Hi, I'm trying to flash an Asus BW-16D1HT Revision 3.10 on Linux (I do not have Windows) and sdftool seems to work:
sdftool -d /dev/sr0 -i ASUS-BW-16D1HT-3.10-WM01601-211901041014.bin rawflash full,enc

Reading input file ASUS-BW-16D1HT-3.10-WM01601-211901041014.bin
Flashing flags = 0x1 : 0 0 0 1 : ---- ---- ---- BOOT
Sending image in encrypted format
Current Drive ID: ASUS_BW-16D1HT_3.10_211901041014_<SERIAL_NUMBER>
Ready to write drive flash memory.
Type "yes" to continue, "no" to abort
yes
Operation started: Sending flash image to drive
100% Operation finished
Operation started: Programming flash
100% Operation finished
Done successfully
But when opening MakeMKV again it seems to still have the original firmware.

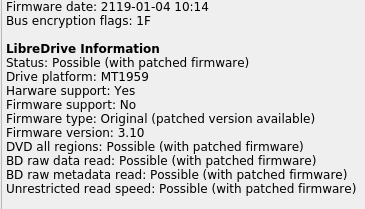

Screen Shot 2021-03-01 at 16.32.46.png
Screen Shot 2021-03-01 at 16.32.46.png (27.25 KiB) Viewed 6801 times
Any ideas?

Coopervid
Posts: 1932
Joined: Tue Feb 19, 2019 10:32 pm

Re: ASUS BW-16D1HT flash issues

Post by Coopervid » Mon Mar 01, 2021 6:18 pm

The ASUS firmware is not encrypted. Don't use "enc".

bas303
Posts: 2
Joined: Mon Mar 01, 2021 3:26 pm

Re: ASUS BW-16D1HT flash issues

Post by bas303 » Tue Mar 02, 2021 11:29 am

Thank you sir, it wasn't clear to me when reading the various posts but that indeed did the trick!

Coopervid
Posts: 1932
Joined: Tue Feb 19, 2019 10:32 pm

Re: ASUS BW-16D1HT flash issues

Post by Coopervid » Tue Mar 02, 2021 11:29 pm

De nada! Happy ripping!
