Discussion of LibreDrive mode, compatible drives and firmwares
-
Shozo
- Posts: 5
- Joined: Mon Sep 28, 2020 4:11 am
#1
Post
by Shozo » Mon Sep 28, 2020 4:22 am

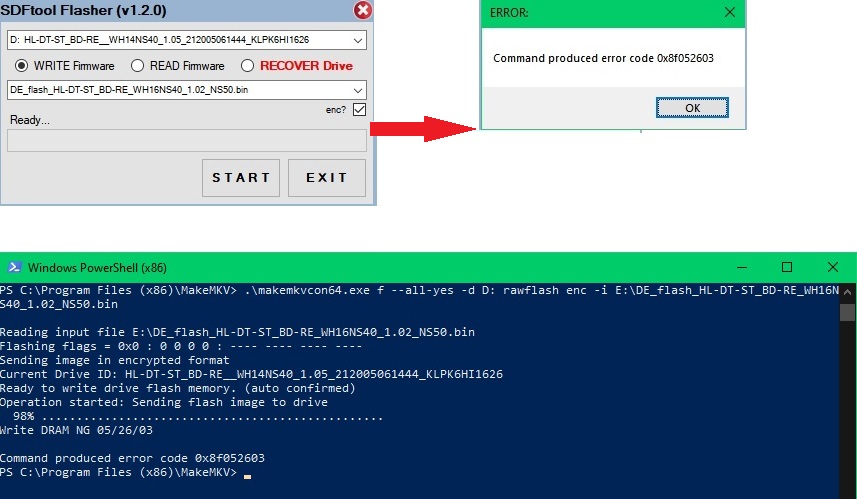

I keep getting this error code both when using the GUI SDFtool Flasher v1.2.0 or the command line makemkvcon64.exe tool to try to flash my new drive. See the screenshots below. What am I doing wrong?
As you can tell I'm a noob. I just want to be able to rip BDs into MKV files so I can watch them on all my devices. UHD isn't necessarily a big priority since my BDs will mostly be HD. Thanks in advance for any help.
- errorcode.jpg (100.38 KiB) Viewed 24381 times
-
Billycar11
- Posts: 4345
- Joined: Sun Aug 24, 2014 5:49 am
#2
Post
by Billycar11 » Mon Sep 28, 2020 5:01 am
flash to WH16NS60 1.02mk like my guide says i made it for a reason to avoid issues like this
-
MartyMcNuts
- Posts: 2877
- Joined: Wed Nov 22, 2017 11:45 pm
#3
Post
by MartyMcNuts » Mon Sep 28, 2020 5:19 am
Also his stock firmware is encrypted, so use the "enc" option.
Cheers
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW):
https://uhdenableddrives.com
-
dcoke22
- Posts: 3103
- Joined: Wed Jul 22, 2020 11:25 pm
#4
Post
by dcoke22 » Mon Sep 28, 2020 5:27 am
The guide is here:
viewtopic.php?f=16&t=19634
It is a sticky post at the top of the UHD drives section. Your drive is new enough that it has an encrypted firmware which makes it harder to downgrade.
-
MartyMcNuts
- Posts: 2877
- Joined: Wed Nov 22, 2017 11:45 pm
#5
Post
by MartyMcNuts » Mon Sep 28, 2020 5:38 am
@Shozo,
You were also trying to flash the WH16NS40 1.02 firmware instead of the WH14NS40 1.05 firmware. When your drive has an encrypted firmware, you really need to flash the equivalent MK firmware first.
So, since your drive has 1.05 on it, you should flash WH14NS40 1.05 MK from the MK firmware pack first using the "enc" option. After this flash, you can then flash the drive to whatever firmware you want to use.
Cheers
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW):
https://uhdenableddrives.com
-
Billycar11
- Posts: 4345
- Joined: Sun Aug 24, 2014 5:49 am
#6
Post
by Billycar11 » Mon Sep 28, 2020 8:39 am
he already had the enc option on in both sdf tool and cmd so i just said the firmware thing thats all thats wrong
-
Shozo
- Posts: 5
- Joined: Mon Sep 28, 2020 4:11 am
#7
Post
by Shozo » Tue Sep 29, 2020 6:54 am
Thanks for all the help. I was able to successfully flash to WH14NS40 1.05 MK from the MK firmware pack.
So from here, will this MK version of the stock firmware allow me to rip BDs to MKV, or should I now flash to WH16NS60 1.02mk? And when I do this, I should leave "enc" unchecked right?
-
Billycar11
- Posts: 4345
- Joined: Sun Aug 24, 2014 5:49 am
#8
Post
by Billycar11 » Tue Sep 29, 2020 8:03 am
Shozo wrote: ↑Tue Sep 29, 2020 6:54 am
Thanks for all the help. I was able to successfully flash to WH14NS40 1.05 MK from the MK firmware pack.
So from here, will this MK version of the stock firmware allow me to rip BDs to MKV, or should I now flash to WH16NS60 1.02mk? And when I do this, I should leave "enc" unchecked right?
you should have flashed directly to WH16NS60 1.02 i dont think the enc option is needed any more but i always flash to undecrypted firmware you flashed to a firmware that is encrypted by default no sure if MK undoes that
-
MartyMcNuts
- Posts: 2877
- Joined: Wed Nov 22, 2017 11:45 pm
#9
Post
by MartyMcNuts » Tue Sep 29, 2020 8:34 am
Billycar11 wrote: ↑Tue Sep 29, 2020 8:03 am
Shozo wrote: ↑Tue Sep 29, 2020 6:54 am
Thanks for all the help. I was able to successfully flash to WH14NS40 1.05 MK from the MK firmware pack.
So from here, will this MK version of the stock firmware allow me to rip BDs to MKV, or should I now flash to WH16NS60 1.02mk? And when I do this, I should leave "enc" unchecked right?
you should have flashed directly to WH16NS60 1.02 i dont think the enc option is needed any more but i always flash to undecrypted firmware you flashed to a firmware that is encrypted by default no sure if MK undoes that
The MK version is not encrypted.
Cheers
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW):
https://uhdenableddrives.com
-
MartyMcNuts
- Posts: 2877
- Joined: Wed Nov 22, 2017 11:45 pm
#10
Post
by MartyMcNuts » Tue Sep 29, 2020 8:36 am
Shozo wrote: ↑Tue Sep 29, 2020 6:54 am
Thanks for all the help. I was able to successfully flash to WH14NS40 1.05 MK from the MK firmware pack.
So from here, will this MK version of the stock firmware allow me to rip BDs to MKV, or should I now flash to WH16NS60 1.02mk? And when I do this, I should leave "enc" unchecked right?
WH16NS60 1.02-MK is recommended if you do not use Redfox's AnyDVD software. Also, now that you have flashed to a MK firmware, the "enc"
option is no longer needed for any further flash.
Cheers
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW):
https://uhdenableddrives.com
-
Shozo
- Posts: 5
- Joined: Mon Sep 28, 2020 4:11 am
#11
Post
by Shozo » Tue Sep 29, 2020 7:20 pm
MartyMcNuts wrote: ↑Tue Sep 29, 2020 8:36 am
WH16NS60 1.02-MK is recommended if you do not use Redfox's AnyDVD software. Also, now that you have flashed to a MK firmware, the "enc"
option is no longer needed for any further flash.
In the latest MK firmware pack (
https://www.makemkv.com/download/mk-fir ... 200720.zip), the ver you recommended, WH16NS60 1.02-MK, appears to be in the old folder, whereas it has 1.03 in what seems to be the current folder. Should I still go ahead and do 1.02 instead of 1.03?
-
MartyMcNuts
- Posts: 2877
- Joined: Wed Nov 22, 2017 11:45 pm
#13
Post
by MartyMcNuts » Tue Sep 29, 2020 11:10 pm
Shozo wrote: ↑Tue Sep 29, 2020 7:20 pm
MartyMcNuts wrote: ↑Tue Sep 29, 2020 8:36 am
WH16NS60 1.02-MK is recommended if you do not use Redfox's AnyDVD software. Also, now that you have flashed to a MK firmware, the "enc"
option is no longer needed for any further flash.
In the latest MK firmware pack (
https://www.makemkv.com/download/mk-fir ... 200720.zip), the ver you recommended, WH16NS60 1.02-MK, appears to be in the old folder, whereas it has 1.03 in what seems to be the current folder. Should I still go ahead and do 1.02 instead of 1.03?
As Billy said, yes. 1.02 is better than 1.03.
Cheers
----------------------------------------------------------------------------------------------------------------------------
For UHD enabled drives (AU/NZ/SG + Others) & DIY Single Drive Flasher (WW):
https://uhdenableddrives.com
-
Shozo
- Posts: 5
- Joined: Mon Sep 28, 2020 4:11 am
#14
Post
by Shozo » Tue Sep 29, 2020 11:39 pm
Just flashed WH16NS60 1.02 MK and I'm currently ripping my first BD.
Thanks so much @MartyMcNuts and @Billycar11 for taking the time to provide so much help for a noob.
Now if I could just figure out once and for all whether it's better to use constant or variable frame rate when transcoding...
-
Billycar11
- Posts: 4345
- Joined: Sun Aug 24, 2014 5:49 am
#15
Post
by Billycar11 » Wed Sep 30, 2020 2:05 am
Shozo wrote: ↑Tue Sep 29, 2020 11:39 pm
Just flashed WH16NS60 1.02 MK and I'm currently ripping my first BD.
Thanks so much @MartyMcNuts and @Billycar11 for taking the time to provide so much help for a noob.
Now if I could just figure out once and for all whether it's better to use constant or variable frame rate when transcoding...
well the real answer is you shouldn't transcode but constant.
