LG WH16NS60 Not flashing

Forum for discussions about UHD-capable dives
Post Reply
anonymouse
Posts: 3
Joined: Wed Apr 08, 2020 7:52 pm

LG WH16NS60 Not flashing

Post by anonymouse » Tue Aug 17, 2021 5:37 pm

I have a LG drive that isn't flashing

It claims to flash ok :

Code: Select all

PS C:\Program Files (x86)\MakeMKV> .\makemkvcon64.exe f --all-yes -d F: rawflash -i C:\Users\johnk\Downloads\HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin

Reading input file C:\Users\johnk\Downloads\HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin
Flashing flags = 0x0 : 0 0 0 0 : ---- ---- ---- ----
Current Drive ID: HL-DT-ST_BD-RE__WH16NS60_1.03_212005081010_XXXXXXXXXX
Ready to write drive flash memory. (auto confirmed)
Operation started: Sending flash image to drive
 100% Operation finished
Operation started: Programming flash
 100% Operation finished
Done successfully

PS C:\Program Files (x86)\MakeMKV>

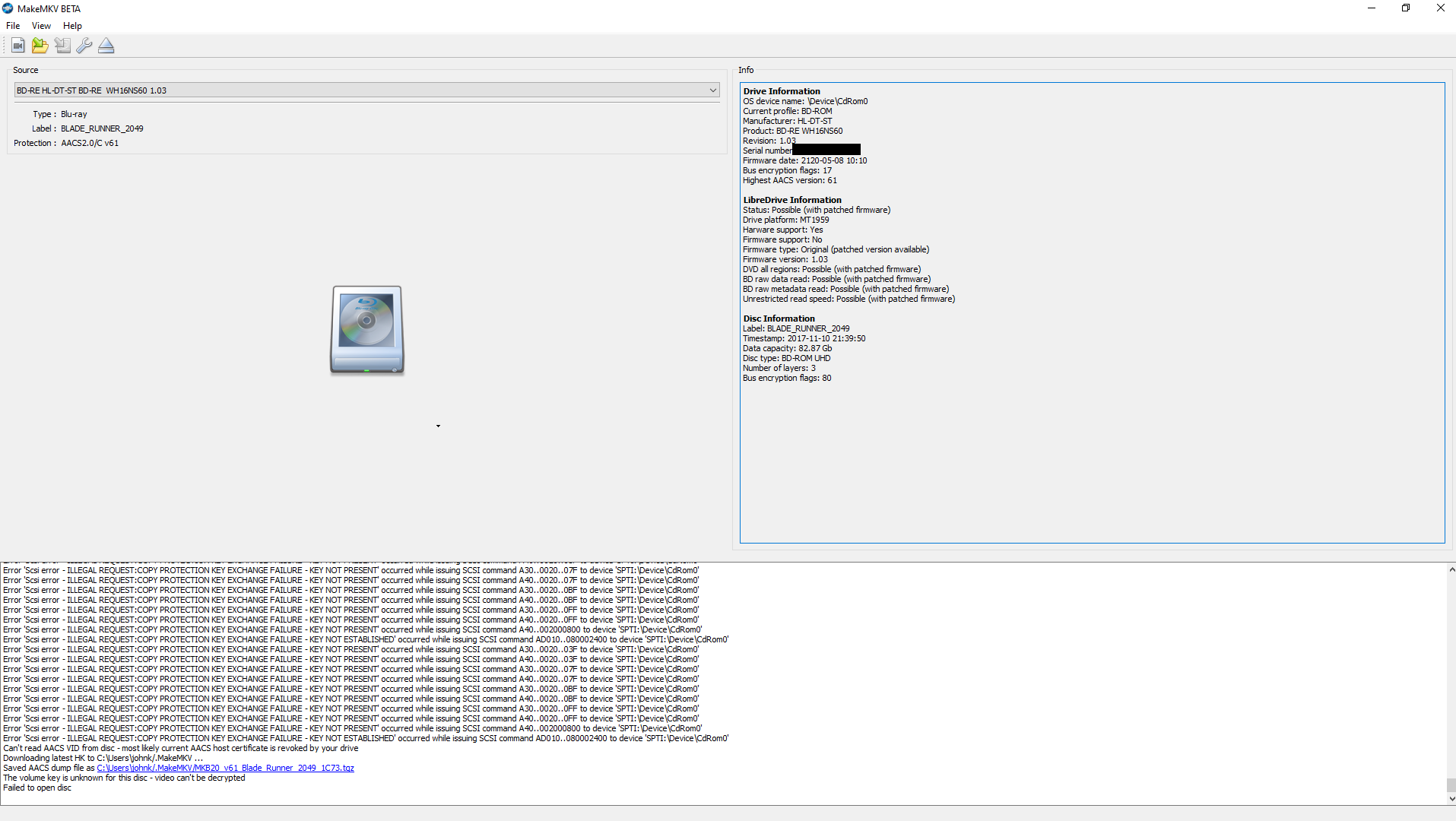

But when I try it afterwards it still lists the original firmware and doesn't work :



Anyone got any suggestions?
Attachments

Coopervid
Posts: 1955
Joined: Tue Feb 19, 2019 10:32 pm

Re: LG WH16NS60 Not flashing

Post by Coopervid » Tue Aug 17, 2021 6:49 pm

You have to add the "enc" option since your original firmware is encrypted. Good Luck!

d00zah
Posts: 1587
Joined: Mon Jun 06, 2016 8:23 pm

Re: LG WH16NS60 Not flashing

Post by d00zah » Tue Aug 17, 2021 6:58 pm

Per the Ultimate UHD Drives Flashing Guide Updated 2021


Newer OEM Firmwares and encrypted:


New Encrypted firmware
List of Know Encrypted firmware (so far, any firmware with date in 2020 is encrypted)
HL-DT-ST-BD-RE_WH16NS60-1.03-N000600-212005081010.bin

Change your command line to include the 'enc' switch...

.\makemkvcon64.exe f --all-yes -d F: rawflash enc -i C:\Users\johnk\Downloads\HL-DT-ST-BD-RE_WH16NS60-1.02-NM00100-211810291936.bin
Last edited by d00zah on Tue Aug 17, 2021 7:58 pm, edited 1 time in total.

anonymouse
Posts: 3
Joined: Wed Apr 08, 2020 7:52 pm

Re: LG WH16NS60 Not flashing

Post by anonymouse » Tue Aug 17, 2021 7:52 pm

Thanks guys, that's done the business - up and working now!

Coopervid
Posts: 1955
Joined: Tue Feb 19, 2019 10:32 pm

Re: LG WH16NS60 Not flashing

Post by Coopervid » Tue Aug 17, 2021 8:00 pm

:D

hardcore_gamer29
Posts: 49
Joined: Sun Aug 08, 2021 5:23 pm

Re: LG WH16NS60 Not flashing

Post by hardcore_gamer29 » Sat Jan 15, 2022 7:31 am

anonymouse wrote:
Tue Aug 17, 2021 7:52 pm
Thanks guys, that's done the business - up and working now!
do i need to do all this as it is already official uhd drive for my intel i9 10900k system?

Billycar11
Posts: 4368
Joined: Sun Aug 24, 2014 5:49 am

Re: LG WH16NS60 Not flashing

Post by Billycar11 » Sat Jan 15, 2022 7:47 am

hardcore_gamer29 wrote:
Sat Jan 15, 2022 7:31 am
do i need to do all this as it is already official uhd drive for my intel i9 10900k system?
no we made all these guides and stuff for no reason when we were bored to confuse the new people /s
Buy a UHD drive from the guide and how to video maker: https://www.makemkv.com/forum/viewtopic ... 20&t=17831
UHD Drives Guide: https://www.makemkv.com/forum/viewtopic ... 16&t=19634
Auto flash kit $25 Email me for one Billycar5924@gmail.com

hardcore_gamer29
Posts: 49
Joined: Sun Aug 08, 2021 5:23 pm

Re: LG WH16NS60 Not flashing

Post by hardcore_gamer29 » Sat Jan 15, 2022 7:59 am

Billycar11 wrote:
Sat Jan 15, 2022 7:47 am
hardcore_gamer29 wrote:
Sat Jan 15, 2022 7:31 am
do i need to do all this as it is already official uhd drive for my intel i9 10900k system?
no we made all these guides and stuff for no reason when we were bored to confuse the new people /s
LOL

greifunk
Posts: 2
Joined: Fri Feb 04, 2022 3:27 am

Re: LG WH16NS60 Not flashing

Post by greifunk » Fri Feb 04, 2022 3:34 am

Thanks so much! I was having issues with my flashing my drive in Linux as well until I found this thread.

For those that may need this help, I ran the following as above and was able to downgrade my 1.05 drive to 1.02 using:

./makemkvcon f --all-yes -d drivename -f /path/to/sdf.bin rawflash enc -i /path/to/flash-file.bin

I hope that helps someone else if they run into this issue!

hardcore_gamer29
Posts: 49
Joined: Sun Aug 08, 2021 5:23 pm

Re: LG WH16NS60 Not flashing

Post by hardcore_gamer29 » Sun Feb 06, 2022 8:14 pm

anonymouse wrote:
Tue Aug 17, 2021 7:52 pm
Thanks guys, that's done the business - up and working now!
which version you used mine also has 1.03. please tell

Coopervid
Posts: 1955
Joined: Tue Feb 19, 2019 10:32 pm

Re: LG WH16NS60 Not flashing

Post by Coopervid » Sun Feb 06, 2022 8:46 pm

Billycar11 wrote:
Sat Jan 15, 2022 7:47 am
hardcore_gamer29 wrote:
Sat Jan 15, 2022 7:31 am
do i need to do all this as it is already official uhd drive for my intel i9 10900k system?
no we made all these guides and stuff for no reason when we were bored to confuse the new people /s
:D :D :D :D :D :D :D
