BD-RE BU40N (LibreDrive 1.04 or lower) stopping reading processes on UHD or BluRay

[zappes01]

Hey Community,

I'm out of ideas. I've a new BD-RE BU40N with firmware 1.04 (original). I read the flashing guide several times and tried to flash the drive with sdftool flasher to "HL-DT-ST-BD-RE_BU40N-1.04-NM00500-212005061142.bin" enc (enabled). After that I downgraded the drive to 1.03 (HL-DT-ST-BD-RE_BU40N-1.03-NM00000-211810241934.bin). I've done the restarts of my drive after each flash. Then I started MakeMKV. The program is recognizing the drive and the UHD Movie correctly. But after starting the ripping, the process stopps everytime after a short period of time. Sometimes I got hash check errors (with 1.03) and after going back to 1.04 I got "too much A/V sychronisation issues". It doesn't matter if it's a UHD or a BluRay disc. Now I'm very concerned I made a mistake or killed my drive!?

This is the latest status:

Drive Information
OS device name: D:
Manufacturer: HL-DT-ST
Product: BD-RE BU40N
Revision: 1.04
Serial number: MO7K8AA2857
Firmware date: 2120-05-06 11:42
Bus encryption flags: 17
Highest AACS version: 78

LibreDrive Information
Status: Enabled
Drive platform: MT1959
Firmware type: Patched (microcode access re-enabled)
Firmware version: 1.04
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

I hope anybody could help!?

[Billycar11]

Likely a power issue post full log

[zappes01]

I'm using the BD-RE BU40N (08/2020) in TechPulse120 USB enclosement directly connected via USB 3.0 with my Dell XPS15 9550.

Here's the log from ripping Bul*** Tra** UHD:

MakeMKV_Log.txt

(112.24 KiB) Downloaded 161 times

[Billycar11]

That's not a full log it starts with the disc being corrupt we need it from opening makemkv

[zappes01]

I'm sorry, debug log was disabled. You'll find the full log attached now.

[zappes01]

I've tried another run - with additional USB power cord connected to the drive and to the notebook. Same movie plus another UHD. Same issues. Please see log file:
https://we.tl/t-UFjErGsY8w (Log-file is too big for attachment here)

I've the same issues with blurays. So any chance to get the drive back working?

[Billycar11]

Try doing a folder backup to rule out java as the issue
Yellow folder icon on top make sure to check decrypt

[zappes01]

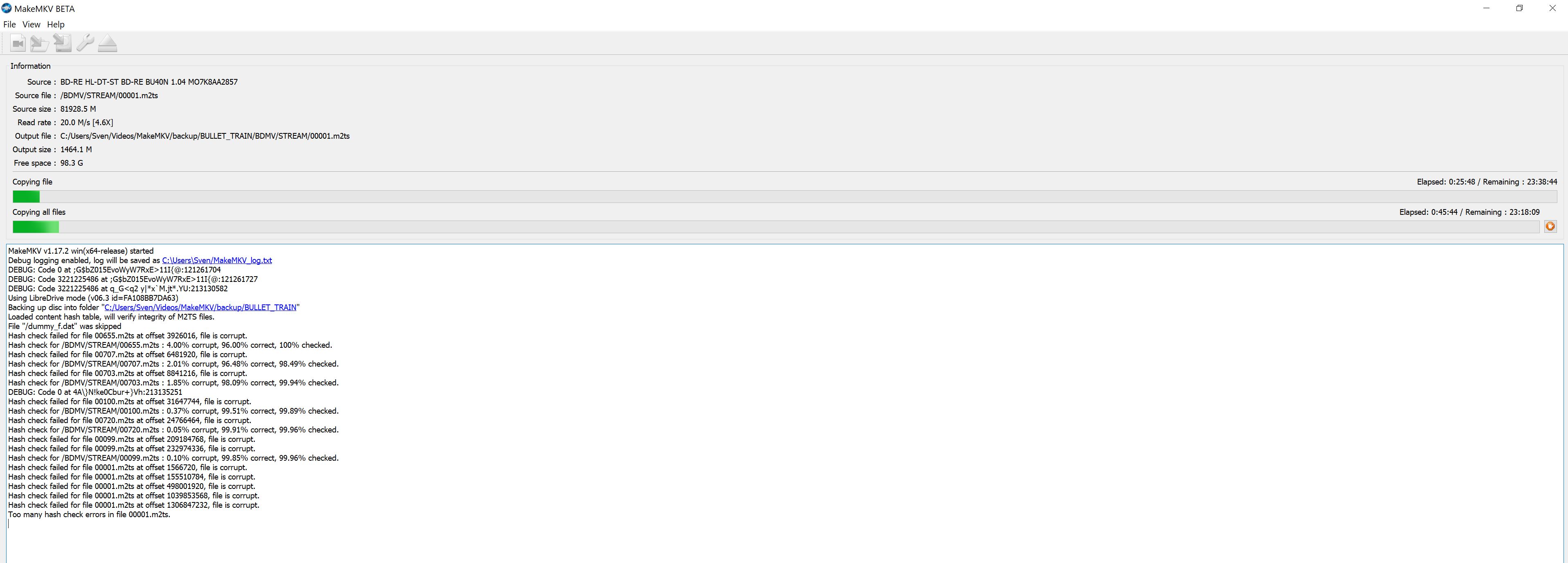

I don't want to kill the backup process to early, but it seems not like the normal behaviour, is it? See image attached. 23 hours remaining...

[zappes01]

It stopped by itself again. Log file attached.

[Billycar11]

It stopped by itself again. Log file attached.

I would try a new disc at this point as there looks to be no power errors in your log

[dcoke22]

Code: Select all

005076:0000 Hash check failed for file 00655.m2ts at offset 3926016, file is corrupt.
001003:0020 DEBUG: Code 3221225653 at `6CF;l<+`$x9]D6No(y!wmrg:121262371
001003:0020 DEBUG: Code 3221225653 at ze@?D]{aalB&'!=Y:213130559
005078:0000 Hash check for /BDMV/STREAM/00655.m2ts : 4.00% corrupt, 96.00% correct, 100% checked.
005076:0000 Hash check failed for file 00707.m2ts at offset 6481920, file is corrupt.

There's a bunch of stuff like that in the log. Either the disc is dirty or was manufactured badly. Have you tried gently cleaning the disc?

[zappes01]

Thanks! Tried completely another movie (BluRay). Worked totally fine with my other Samsung BluRay drive. Unfortunately it didn't work with my BD-RE BU40N. Please see the log. I'm really desperated. Any chance to check the drive (firmware) or try a recovery?

[Coopervid]

If it's new - return it.

If not you should try to narrow down the problem.

Try it with another computer first.

Take the drive out of the enclosure and connect it to SATA of an desktop computer or use a good USB -> SATA adapter to check if the drive is the problem or the enclosure. The USB cables of the enclosure could also be an issue.

[zappes01]

Can you recommend a good USB to SATA adapter?

[zappes01]

Found the infos needed in the guide, thanks!
