Chapters have inaccurate timestamps on all BD and UHD BD

[alexantr]

Every Blu-ray and UHD Blu-ray I tested converts to mkv with inaccurate timestamps in chapters. Deviation is about 100-400 milliseconds in almost all chapters. Can this be fixed?

Some examples:

Blade Runner 2049 UHD Blu-ray

00020.mpls, chapters in MediaInfo:

Code: Select all

00:00:00.000 : Chapter 1
00:12:50.269 : Chapter 2
00:23:43.380 : Chapter 3
00:37:14.982 : Chapter 4
00:43:04.415 : Chapter 5
00:49:38.600 : Chapter 6
00:58:49.651 : Chapter 7
01:04:24.777 : Chapter 8
01:16:01.390 : Chapter 9
01:25:26.579 : Chapter 10
01:36:29.158 : Chapter 11
01:51:09.204 : Chapter 12
02:01:50.970 : Chapter 13
02:08:54.476 : Chapter 14
02:16:56.583 : Chapter 15
02:28:00.830 : Chapter 16
02:43:47.400 : Chapter 17

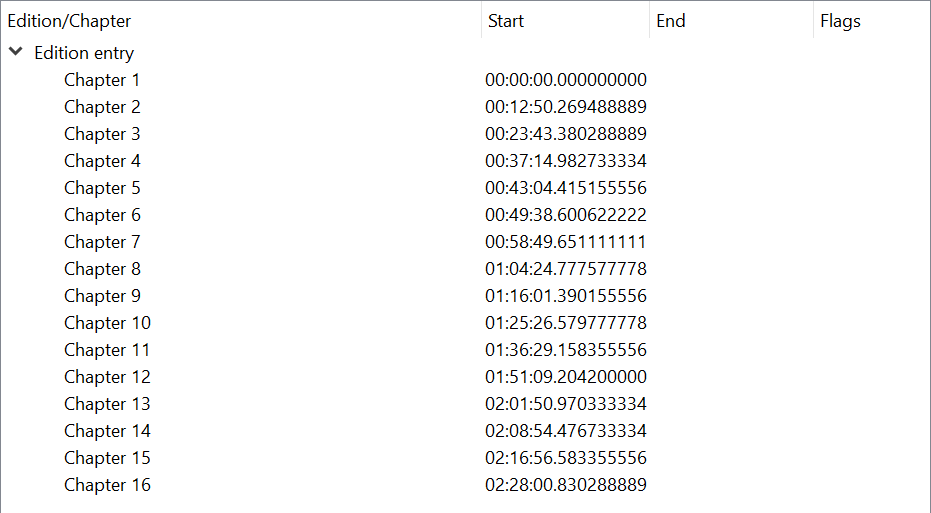

00020.mpls in "MKVToolNix GUI" Chapter editor:


MKV file from MakeMKV, chapters in MediaInfo:

Code: Select all

00:00:00.000 : en:Chapter 01
00:12:50.269 : en:Chapter 02
00:23:43.213 : en:Chapter 03
00:37:14.982 : en:Chapter 04
00:43:04.331 : en:Chapter 05
00:49:38.600 : en:Chapter 06
00:58:49.651 : en:Chapter 07
01:04:24.735 : en:Chapter 08
01:16:01.348 : en:Chapter 09
01:25:26.579 : en:Chapter 10
01:36:29.158 : en:Chapter 11
01:51:08.870 : en:Chapter 12
02:01:50.886 : en:Chapter 13
02:08:54.476 : en:Chapter 14
02:16:56.416 : en:Chapter 15
02:28:01.122 : en:Chapter 16

Timestamps in mkv don't match.

Twister 1996 Blu-ray

00000.mpls, chapters in MediaInfo:

Code: Select all

00:00:00.000 : Chapter 1
00:04:51.416 : Chapter 2
00:09:01.123 : Chapter 3
00:13:14.877 : Chapter 4
00:18:53.632 : Chapter 5
00:24:31.970 : Chapter 6
00:29:32.812 : Chapter 7
00:35:55.903 : Chapter 8
00:41:33.782 : Chapter 9
00:45:08.205 : Chapter 10
00:52:42.325 : Chapter 11
00:58:07.150 : Chapter 12
01:02:11.811 : Chapter 13
01:05:39.644 : Chapter 14
01:10:18.297 : Chapter 15
01:15:12.382 : Chapter 16
01:18:14.064 : Chapter 17
01:25:46.224 : Chapter 18
01:31:34.405 : Chapter 19
01:35:47.408 : Chapter 20
01:38:37.244 : Chapter 21
01:41:26.997 : Chapter 22
01:43:34.917 : Chapter 23
01:45:52.846 : Chapter 24

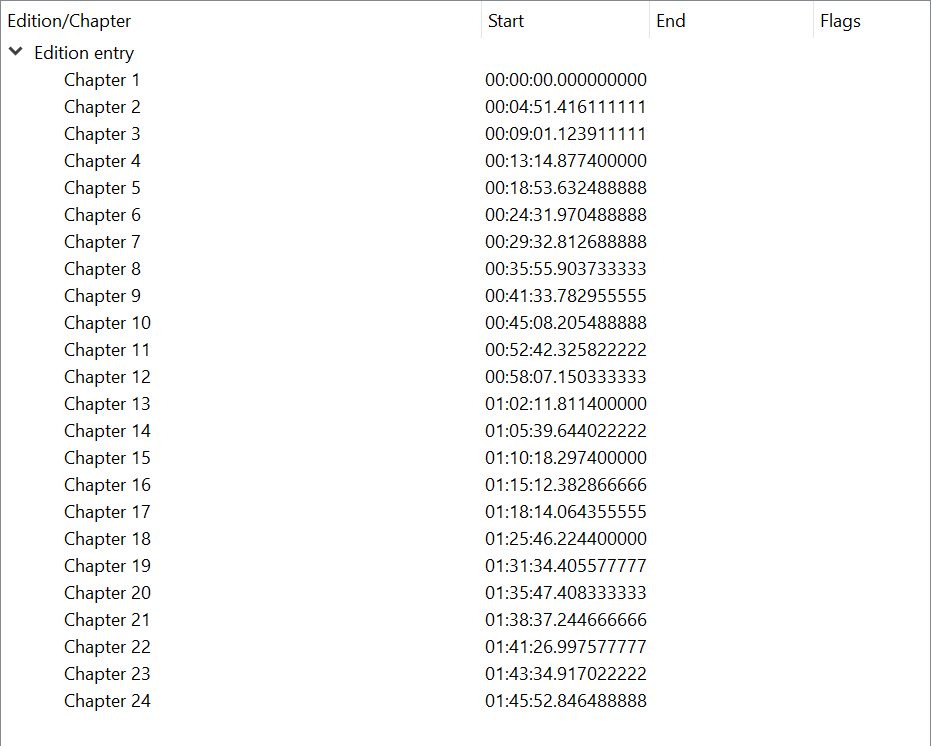

00020.mpls in "MKVToolNix GUI" Chapter editor:


MKV file from MakeMKV, chapters in MediaInfo:

Code: Select all

00:00:00.000 : en:Chapter 01
00:04:51.249 : en:Chapter 02
00:09:01.374 : en:Chapter 03
00:13:14.877 : en:Chapter 04
00:18:53.257 : en:Chapter 05
00:24:32.512 : en:Chapter 06
00:29:32.520 : en:Chapter 07
00:35:56.028 : en:Chapter 08
00:41:33.782 : en:Chapter 09
00:45:08.080 : en:Chapter 10
00:52:42.159 : en:Chapter 11
00:58:06.858 : en:Chapter 12
01:02:11.728 : en:Chapter 13
01:05:39.393 : en:Chapter 14
01:10:18.297 : en:Chapter 15
01:15:12.049 : en:Chapter 16
01:18:14.523 : en:Chapter 17
01:25:46.516 : en:Chapter 18
01:31:34.780 : en:Chapter 19
01:35:47.950 : en:Chapter 20
01:38:37.286 : en:Chapter 21
01:41:27.498 : en:Chapter 22
01:43:34.917 : en:Chapter 23
01:45:52.554 : en:Chapter 24

Timestamps in mkv don't match.

Angel Has Fallen UHD Blu-ray

00800.mpls, chapters in MediaInfo:

Code: Select all

00:00:00.000 : Chapter 1
00:06:48.950 : Chapter 2
00:15:08.157 : Chapter 3
00:23:13.809 : Chapter 4
00:28:35.714 : Chapter 5
00:39:39.627 : Chapter 6
00:45:33.564 : Chapter 7
00:50:56.053 : Chapter 8
00:59:23.393 : Chapter 9
01:06:50.881 : Chapter 10
01:16:25.872 : Chapter 11
01:24:11.046 : Chapter 12
01:30:14.409 : Chapter 13
01:37:42.064 : Chapter 14
01:44:54.538 : Chapter 15
01:51:08.119 : Chapter 16
02:01:03.089 : Chapter 17

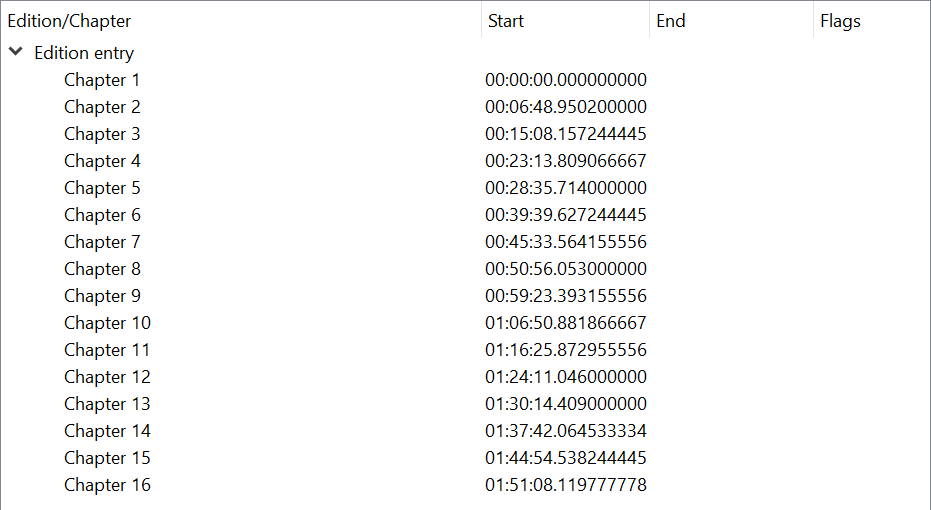

00800.mpls in "MKVToolNix GUI" Chapter editor:


MKV file from MakeMKV, chapters in MediaInfo:

Code: Select all

00:00:00.000 : en:Chapter 01
00:06:48.616 : en:Chapter 02
00:15:07.948 : en:Chapter 03
00:23:13.767 : en:Chapter 04
00:28:35.380 : en:Chapter 05
00:39:39.627 : en:Chapter 06
00:45:33.439 : en:Chapter 07
00:50:56.053 : en:Chapter 08
00:59:23.017 : en:Chapter 09
01:06:50.715 : en:Chapter 10
01:16:25.581 : en:Chapter 11
01:24:10.879 : en:Chapter 12
01:30:14.409 : en:Chapter 13
01:37:42.064 : en:Chapter 14
01:44:54.454 : en:Chapter 15
01:51:08.119 : en:Chapter 16

Timestamps in mkv don't match.

[dcoke22]

I'm not aware of a way to edit the timestamps of chapters in MakeMKV. I think you'd have to do it after the fact with MKVToolNix or some other tool.

Out of curiosity, why does the discrepancy matter to you?

[kyprime22]

Out of curiosity, why does the discrepancy matter to you?

why is this a question? some people want to perserve things with 100% original integrity
I hate questions like this
it's called OCD, perfectionists, collectors etc. some people have a higher standard of procedure integrity, some people just rip a bluray disc, compress it to hell to 10% of the original size where they might as well have bought the dvd version and call it a day for their disc to digital collection
other people do a full 30~80+ gb copy and maintain it 1:1
why do original paintings cost more than 99.99% perfect copies? because it's not the 100% original, yes, it matters

[Woodstock]

Did you notice that MediaInfo is truncating to 3 decimal places?

The values shown in the MKVToolNix GUI match the Mediainfo values through the 3rd decimal digit, but continue on for 6 additional decimal digits.

[dcoke22]

My question to you was not intended to pass judgement on your concern for the accuracy of chapter marker locations. I am genuinely curious if you have a use case or work flow where the accuracy matters.

I keep my original rips in all of their untranscoded, maximum bit rate glory. It has never occurred to me to verify that the chapter breaks are frame accurate between multiple tools. Even after reading your original post I find it doesn't bother me at all that there might be some variability in the chapter points.

Chapter break points are a construct of the medium… the director didn't worry about chapter break points while filming the movie or preparing it for theatrical release. I wonder how many directors even have any input into their location and number when a blu-ray is authored? This is a long winded way to say, in my view, chapter markers aren't part of the movie. They're a thing that comes with the blu-ray. The act of making a .mkv file throws away quite a lot of things that come with the blu-ray, because most of them are annoying and don't serve the film. That said, I prefer there to be chapter markers since they're handy in the rare instances of me needing to skip around in a movie.

[alexantr]

the director didn't worry about chapter break points while filming the movie

That's smart excuse

MakeMKV has the feature and it must works well with same accuracy like in audio and subtitles. This is my point.

Chapters can be truncated to 3 digits after point like MediaInfo shows if MKVToolNix's accuracy is difficult to implement. Mistake <1ms doesn't make sense because it much less than frame time. But mistake 400ms can look ugly when I jump to chapter and see small part of previous scene, for example.

[jinx100]

It looks like MakeMKV drops an occasional video frame to maintain audio-video synchronization. See viewtopic.php?f=1&t=26683 , for example, which could explain the differences in chapter length. One frame at 24 fps is 42 msec.

Edit:

This is advertising my ignorance, but what determines time in an MKV file. I thought the audio stream has time markers but for variable frame rate, both audio and video would need time markers. What determines the chapter or video length? Is it the number of frames divided by fps or some time marker in the audio?

[alexantr]

mpls file contains full information about chapters. No matter what number of m2ts files it has.

[Woodstock]

I thought the audio stream has time markers but for variable frame rate, both audio and video would need time markers. What determines the chapter or video length? Is it the number of frames divided by fps or some time marker in the audio?

I think it's PFM, myself.

[jinx100]

alexantr:

The chapter marker differences appear to be multiples of 0.041666... sec or one frame at 24 fps. If the chapter length changes to maintain audio-video synchronization, the chapter marker should also move so it still appears at a scene change.

Maybe this is Woodstock's magic.

[alexantr]

What determines the chapter or video length? Is it the number of frames divided by fps or some time marker in the audio?

I found some information about mpls structure. Time offsets and durations are measured in 45000ths of a second. There is no relation to video or audio.
I still think that MakeMKV just has some mistakes in time calculation and they can be fixed.
